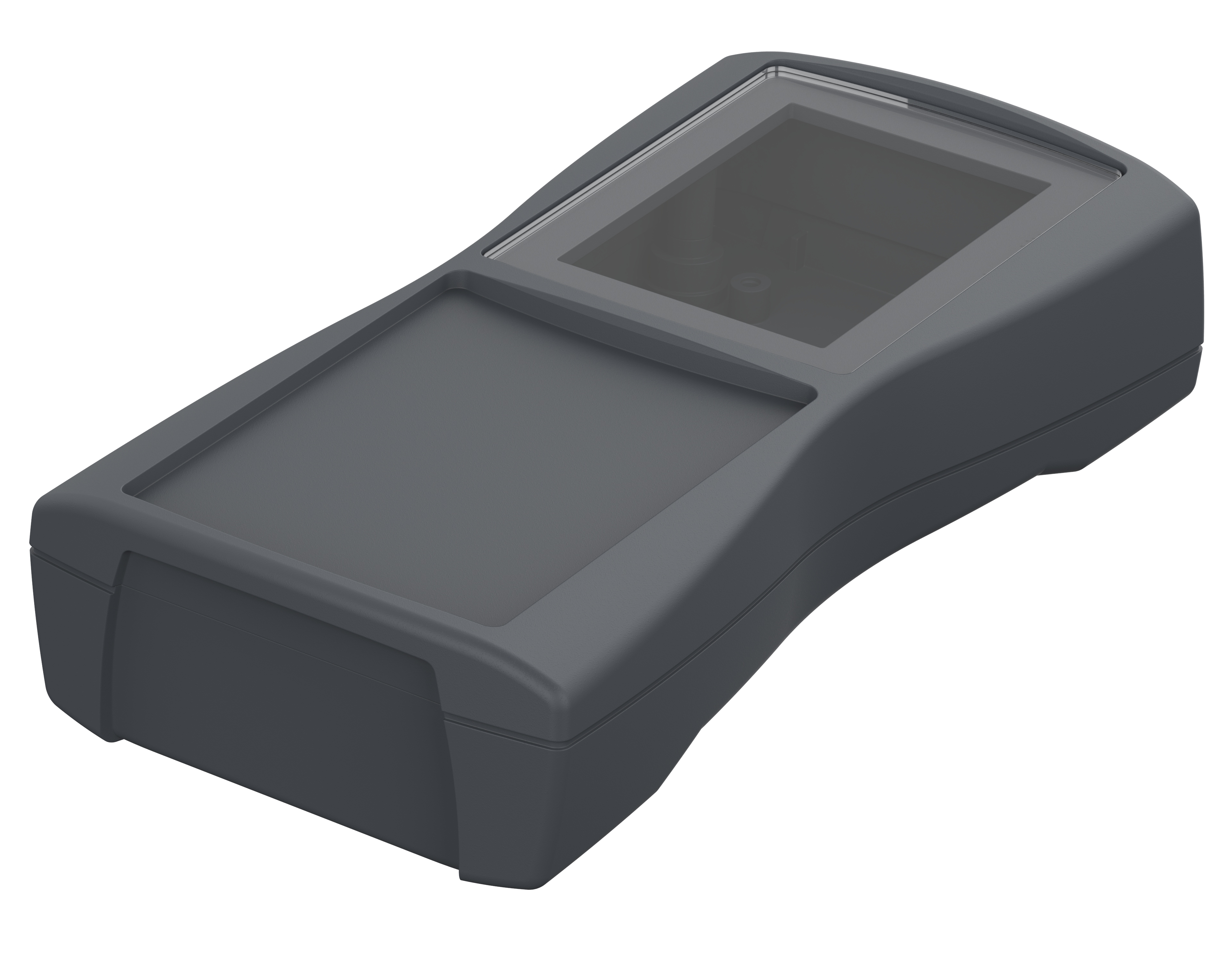

BS 500 DIS-7024 BS 500 DIS without battery compartment, IP 40 (IP 65)
BS 500 DIS without battery compartment, IP 40 (IP 65)
BS 500 DIS-7024
Order No:
82500224
Dimensions
140.3 x 72.9 x 31.3 mmTechnical Drawings
82500224_BS-500-DIS-7024-G.dxf
82500224_BS-500-DIS-7024-G.dxf
(1.3 MB)
82500224_BS-500-DIS-7024.pdf
82500224_BS-500-DIS-7024.pdf
(213.1 KB)
82500224_BS-500-DIS-7024.dxf
82500224_BS-500-DIS-7024.dxf
(2.8 MB)
82500224_BS-500-DIS-7024-pcb.pdf
82500224_BS-500-DIS-7024-pcb.pdf
(181.3 KB)
82500224_BS-500-DIS-7024-pcb.dxf
82500224_BS-500-DIS-7024-pcb.dxf
(1.1 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
graphite grey
Protection class
IP 40, 65
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base, display screen, adhesive film, 4 screws
Note
* = Available on request. Upgradable to IP 65 by fitting DI-D.
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
