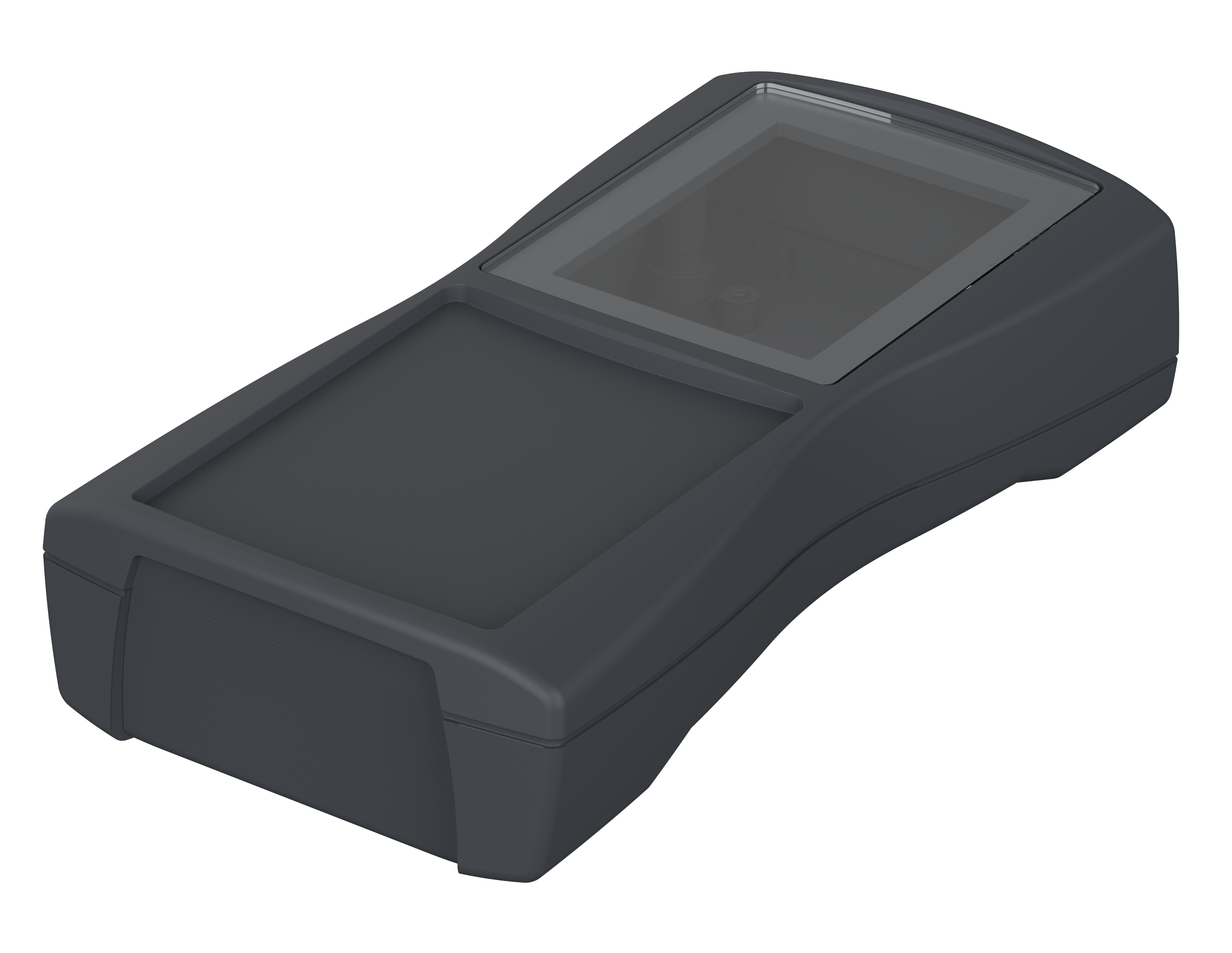

BS 501 DIS-7024 BS 501 DIS with compartment for 3 micro (AAA) batteries, IP 40
BS 501 DIS with compartment for 3 micro (AAA) batteries, IP 40
BS 501 DIS-7024
Order No:
82501224
Dimensions
140.3 x 72.9 x 31.3 mmTechnical Drawings
82501224_BS-501-DIS-7024-G.dxf
82501224_BS-501-DIS-7024-G.dxf
(1.5 MB)
82501224_BS-501-DIS-7024.pdf
82501224_BS-501-DIS-7024.pdf
(245.4 KB)
82501224_BS-501-DIS-7024.dxf
82501224_BS-501-DIS-7024.dxf
(3.5 MB)
82501224_BS-501-DIS-7024-pcb.pdf
82501224_BS-501-DIS-7024-pcb.pdf
(181.3 KB)
82501224_BS-501-DIS-7024-pcb.dxf
82501224_BS-501-DIS-7024-pcb.dxf
(1.1 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
graphite grey
Protection class
IP 40
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base, display screen, adhesive film, 4 screws, battery compartment lid, screws, battery contacts
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
