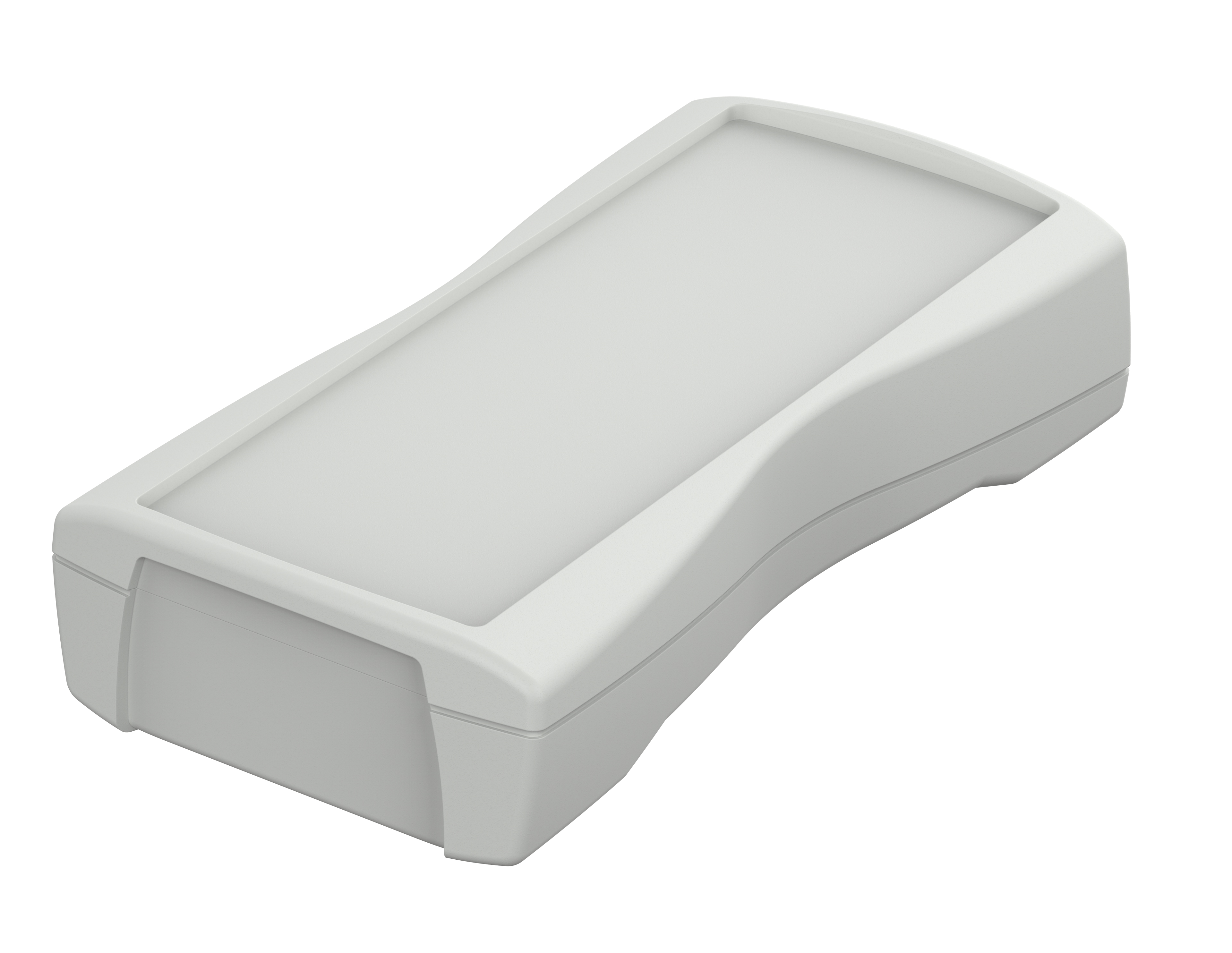

BS 501 F-7035 BS 501 F with compartment for 3 micro (AAA) batteries, IP 40
BS 501 F with compartment for 3 micro (AAA) batteries, IP 40
BS 501 F-7035
Order No:
82501135
Dimensions
140.3 x 72.9 x 31.3 mmTechnical Drawings
82501135_BS-501-F-7035-G.dxf
82501135_BS-501-F-7035-G.dxf
(1.3 MB)
82501135_BS-501-F-7035.pdf
82501135_BS-501-F-7035.pdf
(232.3 KB)
82501135_BS-501-F-7035.dxf
82501135_BS-501-F-7035.dxf
(3.1 MB)
82501135_BS-501-F-7035-pcb.pdf
82501135_BS-501-F-7035-pcb.pdf
(181.3 KB)
82501135_BS-501-F-7035-pcb.dxf
82501135_BS-501-F-7035-pcb.dxf
(1.1 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Light grey, similar to RAL 7035
Protection class
IP 40
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base, 4 screws, battery compartment lid, screws, battery contacts
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
