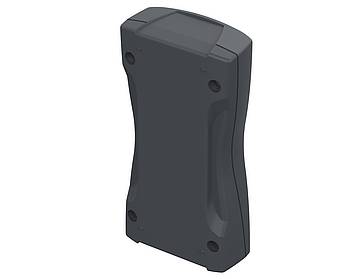

BS 502 DIS-7024 BS 502 DIS without battery compartment, IP 65
BS 502 DIS without battery compartment, IP 65
BS 502 DIS-7024
Order No:
82502224 Manufacturer No: 82502224
Dimensions
140.3 x 72.9 x 31.3 mmTechnical Drawings
82502224_BS-502-DIS-7024-G.dxf
82502224_BS-502-DIS-7024-G.dxf
(1.3 MB)
82502224_BS-502-DIS-7024.pdf
82502224_BS-502-DIS-7024.pdf
(213.1 KB)
82502224_BS-502-DIS-7024.dxf
82502224_BS-502-DIS-7024.dxf
(2.8 MB)
82502224_BS-502-DIS-7024-pcb.pdf
82502224_BS-502-DIS-7024-pcb.pdf
(181.3 KB)
82502224_BS-502-DIS-7024-pcb.dxf
82502224_BS-502-DIS-7024-pcb.dxf
(1.1 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
graphite grey
Protection class
IP 65
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base including seal, display screen, adhesive film, 4 screws
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
