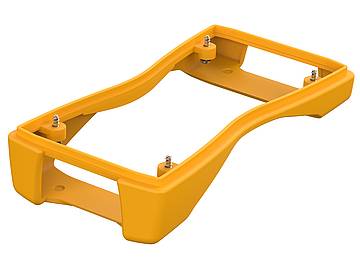

BS 600 DI-D-1003 Decor seals
Decor seals
BS 600 DI-D-1003
Order No:
82861003 Manufacturer No: 82861003
Technical Drawings
82861003_BS-600-DI-D-1003.pdf
82861003_BS-600-DI-D-1003.pdf
(115.5 KB)
82861003_BS-600-DI-D-1003.dxf
82861003_BS-600-DI-D-1003.dxf
(2.0 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
yellow
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Decor seal, 4 screws; BS 200 DI-D-… 1 screw
Note
Not for use with BS .02 and BS .04.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
