BTK 7.0-AP BoTouch press-in profile set
BoTouch press-in profile set
BTK 7.0-AP
Order No:
78080700 Manufacturer No: 78080700
Technical Drawings
78080700_BTK-7-0-AP.pdf
78080700_BTK-7-0-AP.pdf
(247.5 KB)
78080700_BTK-7-0-AP.dxf
78080700_BTK-7-0-AP.dxf
(3.2 MB)
Product Information
BoTouch_GB.pdf
(2.6 MB)
Product Specs
Enclosure Material
Rear hood: galvanised sheet steel
Rear panel: anodized aluminium
BTK enclosure frame: PC UL 94 V0
BTK-IP enclosure frame: PA 6.6 GF 30 UL 94 V0
BTA front frame: aluminium (anodized or powder-coated)
Scope of delivery

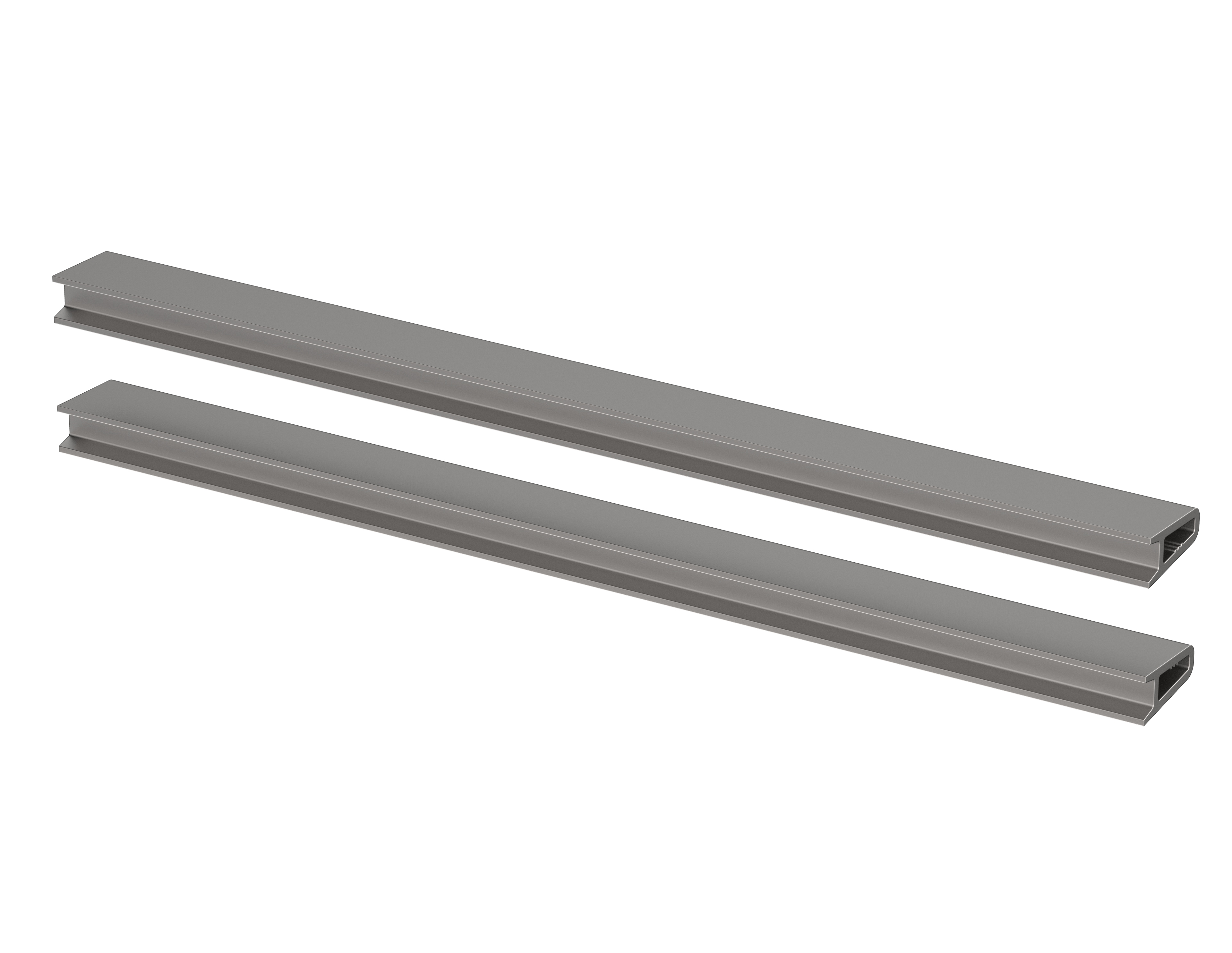

2 profiles for longitudinal side mounting, 2 profiles for short-side mounting (only BTK 10.4)
Note
Recommended for thin / delicate installation areas and IP protection requirement.
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
