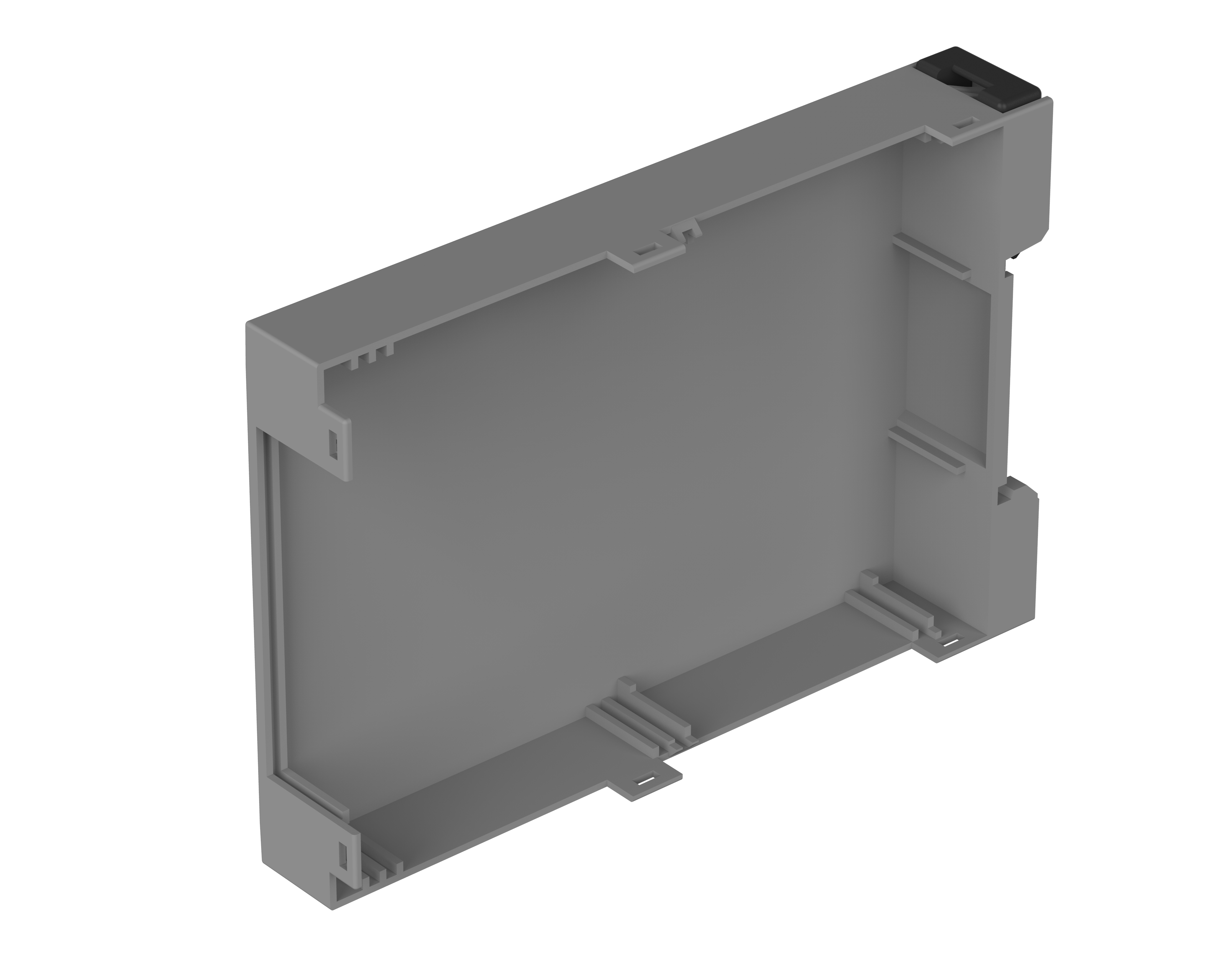

CN 19 GU Enclosure shells
Enclosure shells
CN 19 GU
Order No:
65019000 Manufacturer No: 65019000
Dimensions
19 x 75 x 110.8 mmTechnical Drawings
65019000_CN-19-GU.pdf
65019000_CN-19-GU.pdf
(47.8 KB)
65019000_CN-19-GU.dxf
65019000_CN-19-GU.dxf
(581.1 KB)
CN-Compact_Platinenzeichnungen-pcb.pdf
CN-Compact_Platinenzeichnungen-pcb.pdf
(86.9 KB)
CN-Compact_Platinenzeichnungen-pcb.dxf
CN-Compact_Platinenzeichnungen-pcb.dxf
(476.0 KB)
Product Information
CombiNorm_Compact_GB.pdf
(307.5 KB)
Product Specs
Color of enclosure group
Light grey
Protection class
IP 40
Enclosure Material
PA 6.6-FR (UL 94 V0); for details see Technical Information
Scope of delivery
PU = 1 piece
Material Data
PA 66 Frianyl A3
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
