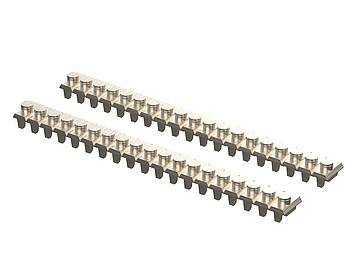

CNA 100 Adapter plate for fitting circuit boards and closing the screw openings with the use of STL 950, 20 parts, can be broken off
Adapter plate for fitting circuit boards and closing the screw openings with the use of STL 950, 20 parts, can be broken off
CNA 100
Order No:
65010100 Manufacturer No: 65010100
Technical Drawings
65010100_CNA-100.pdf
65010100_CNA-100.pdf
(79.3 KB)
65010100_CNA-100.dxf
65010100_CNA-100.dxf
(614.2 KB)
Product Information
CombiNorm_Classic_GB.pdf
(329.6 KB)
Product Specs
Color of enclosure group
Light grey
Enclosure Material
ABS; UL 94 V0 material on request; for details see Technical Information
Scope of delivery
2 pieces
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
