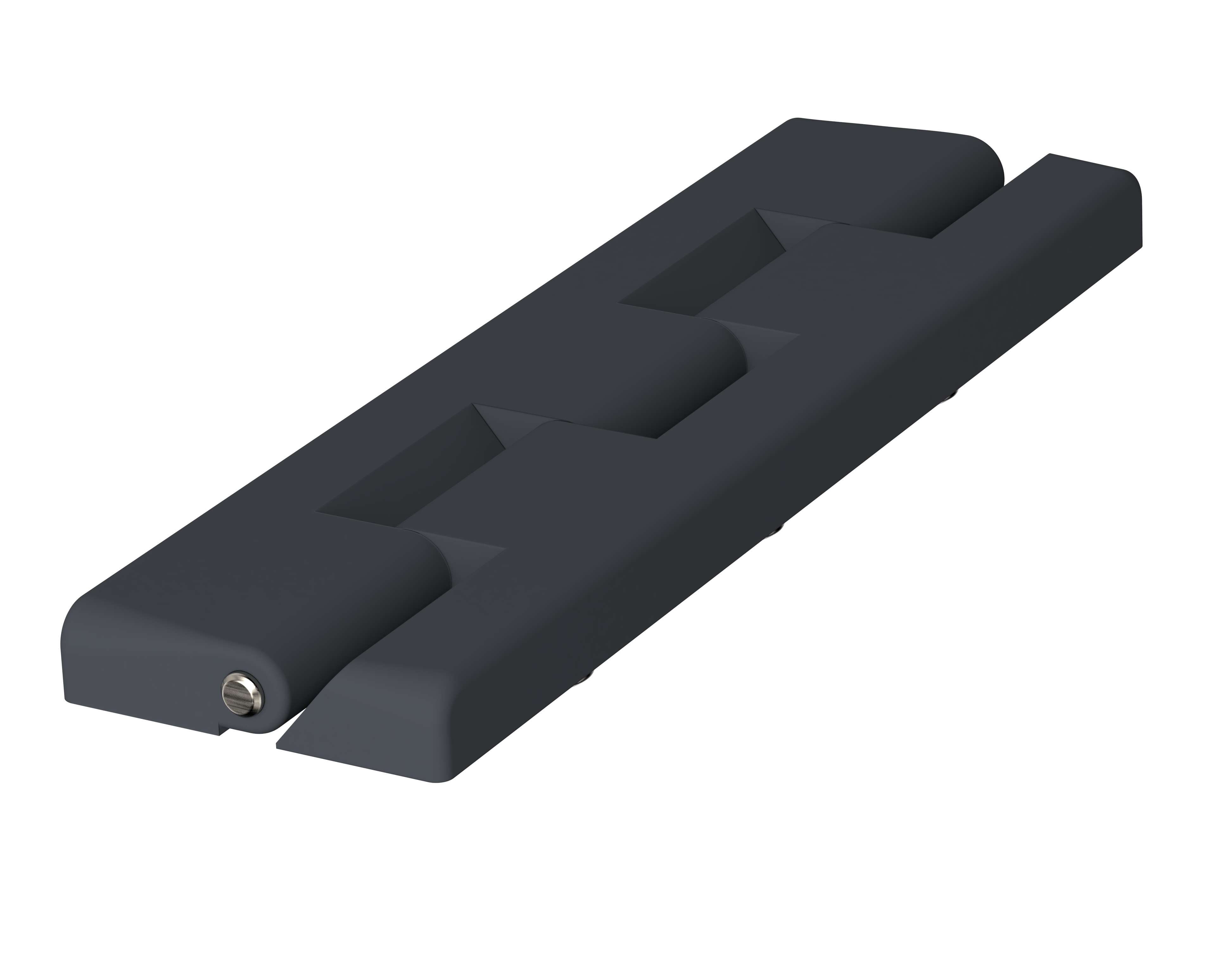

DSC 1230 Rear lid hinges on both sides, graphite grey, for basic elements and rear lid
Rear lid hinges on both sides, graphite grey, for basic elements and rear lid
DSC 1230
Order No:
39502000 Manufacturer No: 39502000
Technical Drawings
39502000_DSC-1230.pdf
39502000_DSC-1230.pdf
(46.4 KB)
39502000_DSC-1230.dxf
39502000_DSC-1230.dxf
(282.6 KB)
Product Information
CombiCard_1000-3000_CombiSet_500_GB.pdf
(994.9 KB)
Product Specs
Color of enclosure group
graphite grey
Enclosure Material
ABS; PC (only crystal-clear lids), seal made of EPDM; for details see Technical Information
Scope of delivery
2 hinges
Note
Opening angle approx. 135°.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
