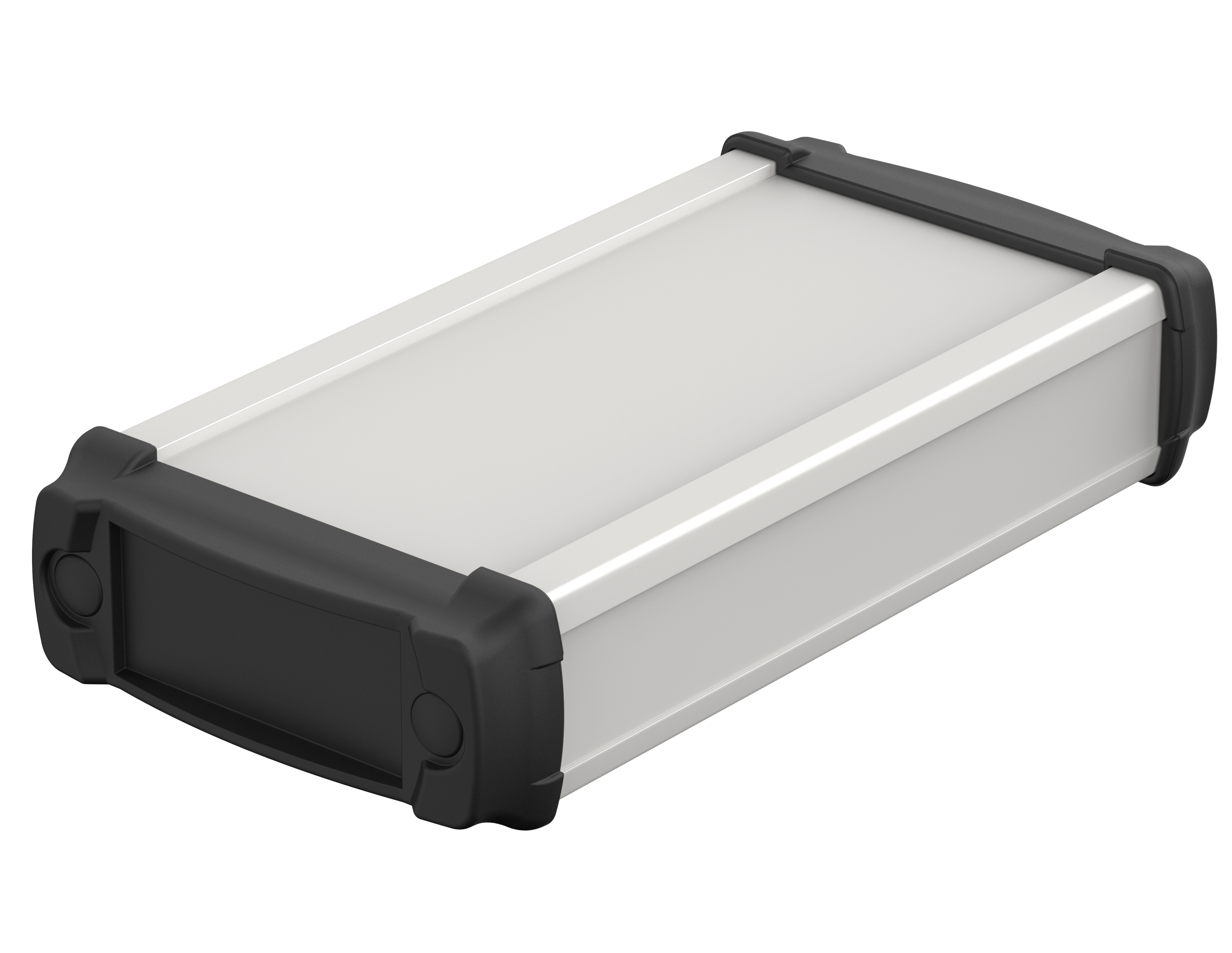

ELP 620-0100 D Closed enclosure with plastic lids
Closed enclosure with plastic lids
ELP 620-0100 D
Order No:
83062100.S6
Dimensions
57.5 x 22 x 100 mmTechnical Drawings
83062100.S6_2-ELD-620-G.dxf
83062100.S6_2-ELD-620-G.dxf
(389.0 KB)
83062100.S6_ELP-620-0100-D.pdf
83062100.S6_ELP-620-0100-D.pdf
(61.7 KB)
83062100.S6_ELP-620-0100-D.dxf
83062100.S6_ELP-620-0100-D.dxf
(886.1 KB)
Product Information
BOS-Ecoline_GB.pdf
(2.0 MB)
Product Specs
Color of enclosure group
adonised, colorless / black (RAL 9005)
Protection class
IP 54
Enclosure Material
Extruded profiles: Al Mg Si 0.5 anodized; plastic lid: ABS; for details see Technical Information
Scope of delivery
1 enclosure profile, 2 plastic end covers, 4 screws, 4 screw covers
Note
C = profile length, special lengths on request.
D = end cover without wall bracket; DW = end cover with wall bracket
Material Data
(Profile material)
ABS Elix H605 (Cover)
ABS Cycolac GPM5500S (Cover)
ABS MMIA Polyman (Cover)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
