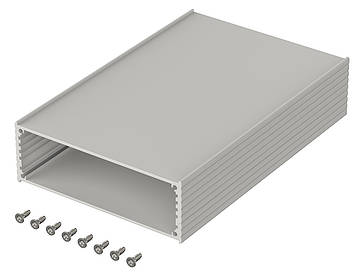

F 1036-160 Filotec enclosures with membrane keypad area (1.5 mm)
Filotec enclosures with membrane keypad area (1.5 mm)
F 1036-160
Order No:
97116160 Manufacturer No: 97116160
Dimensions
105 x 36 x 160 mmTechnical Drawings
97116160_F-1036-160-G.dxf
97116160_F-1036-160-G.dxf
(625.6 KB)
97116160_F-1036-160.pdf
97116160_F-1036-160.pdf
(156.2 KB)
97116160_F-1036-160.dxf
97116160_F-1036-160.dxf
(1.0 MB)
Product Information
Filotec_GB.pdf
(511.3 KB)
Product Specs
Protection class
IP 40
Enclosure Material
Al Mg Si 0.5 anodized; for details, please see Technical Information
Scope of delivery
2 enclosure half shells, 8 screws for mounting cover
Note
C = profile length, special lengths on request. Covers: See following pages. Please order separately.
** = supplied without screw accessory pack. Please order fixing screws (1 piece) separately: 59000175.
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
