F 424-100 Filotec enclosures with membrane keypad area (1 mm)
Filotec enclosures with membrane keypad area (1 mm)
F 424-100
Order No:
97143100
Dimensions
41.6 x 24.4 x 100 mmTechnical Drawings
97143100_F-424-100-G.dxf
97143100_F-424-100-G.dxf
(563.2 KB)
97143100_F-424-100.pdf
97143100_F-424-100.pdf
(134.3 KB)
97143100_F-424-100.dxf
97143100_F-424-100.dxf
(662.3 KB)
Product Information
Filotec_GB.pdf
(511.3 KB)
Product Specs
Protection class
IP 40
Enclosure Material
Al Mg Si 0.5 anodized; for details, please see Technical Information
Scope of delivery

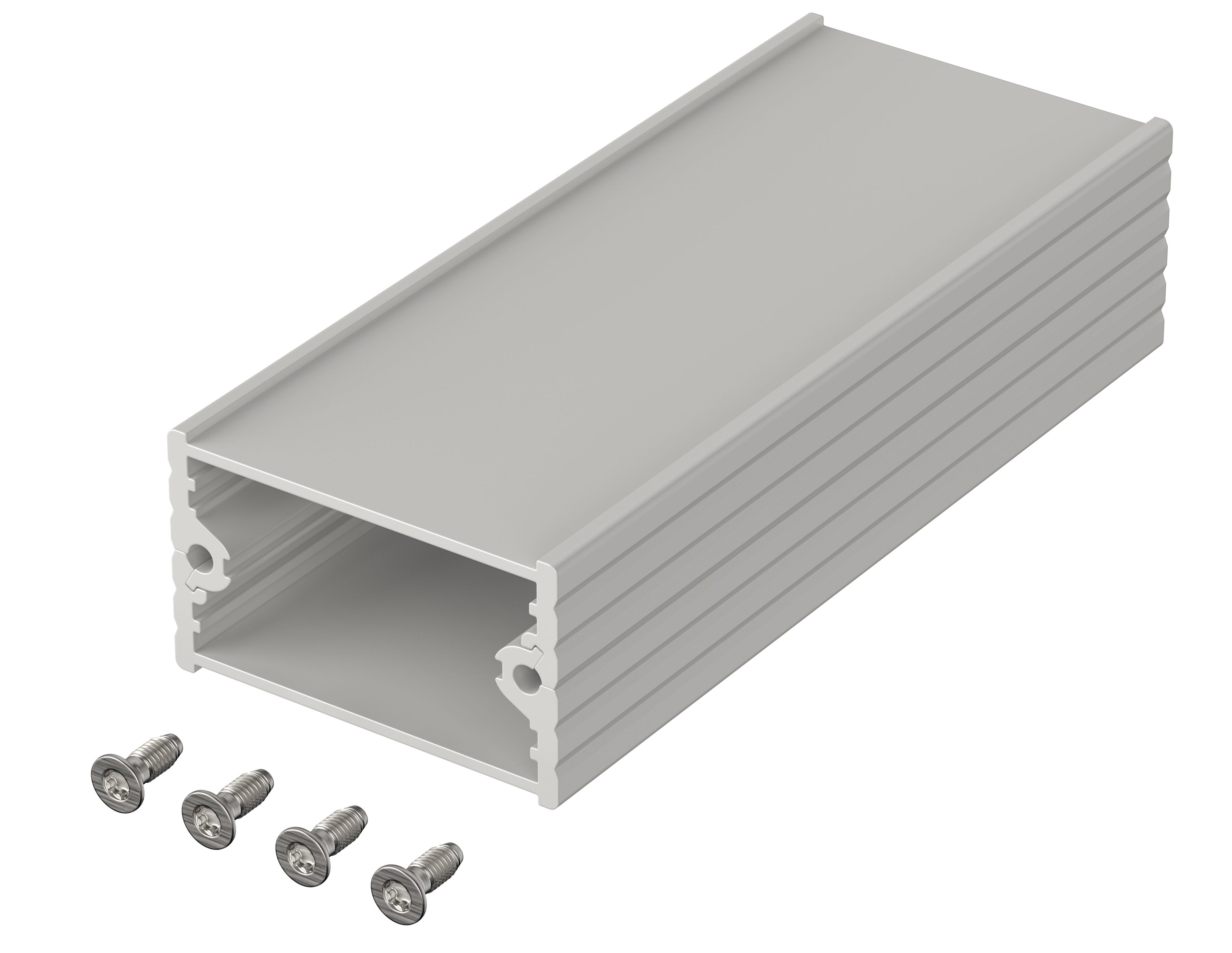

2 enclosure half shells, 4 screws for mounting cover
Note
C = profile length, special lengths on request. Covers: See following pages. Please order separately.
** = supplied without screw accessory pack. Please order fixing screws (1 piece) separately: 59000175.
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
