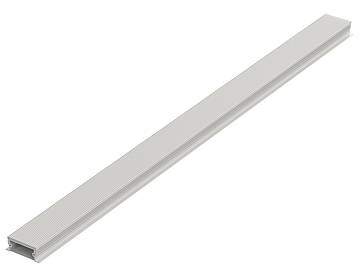

F 524-1000 KWL Filotec enclosures with cooling fins on one half-shell and continuous profiled wall brackets on the other half-shell
Filotec enclosures with cooling fins on one half-shell and continuous profiled wall brackets on the other half-shell
F 524-1000 KWL
Order No:
97453000** Manufacturer No: 97453000
Dimensions
55.3 x 24.4 x 1000 mmTechnical Drawings
97453000_F-524-1000-KWL.pdf
97453000_F-524-1000-KWL.pdf
(136.8 KB)
97453000_F-524-1000-KWL.dxf
97453000_F-524-1000-KWL.dxf
(875.5 KB)
Product Information
Filotec_GB.pdf
(511.3 KB)
Product Specs
Protection class
IP 40
Enclosure Material
Al Mg Si 0.5 anodized; for details, please see Technical Information
Scope of delivery
2 enclosure half shells, 4 screws for mounting cover
Note
C = profile length, special lengths on request. Covers: See following pages. Please order separately.
** = supplied without wall fitting holes and screw accessory pack. Please order fixing screws (1 piece) separately: 59000175.
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
