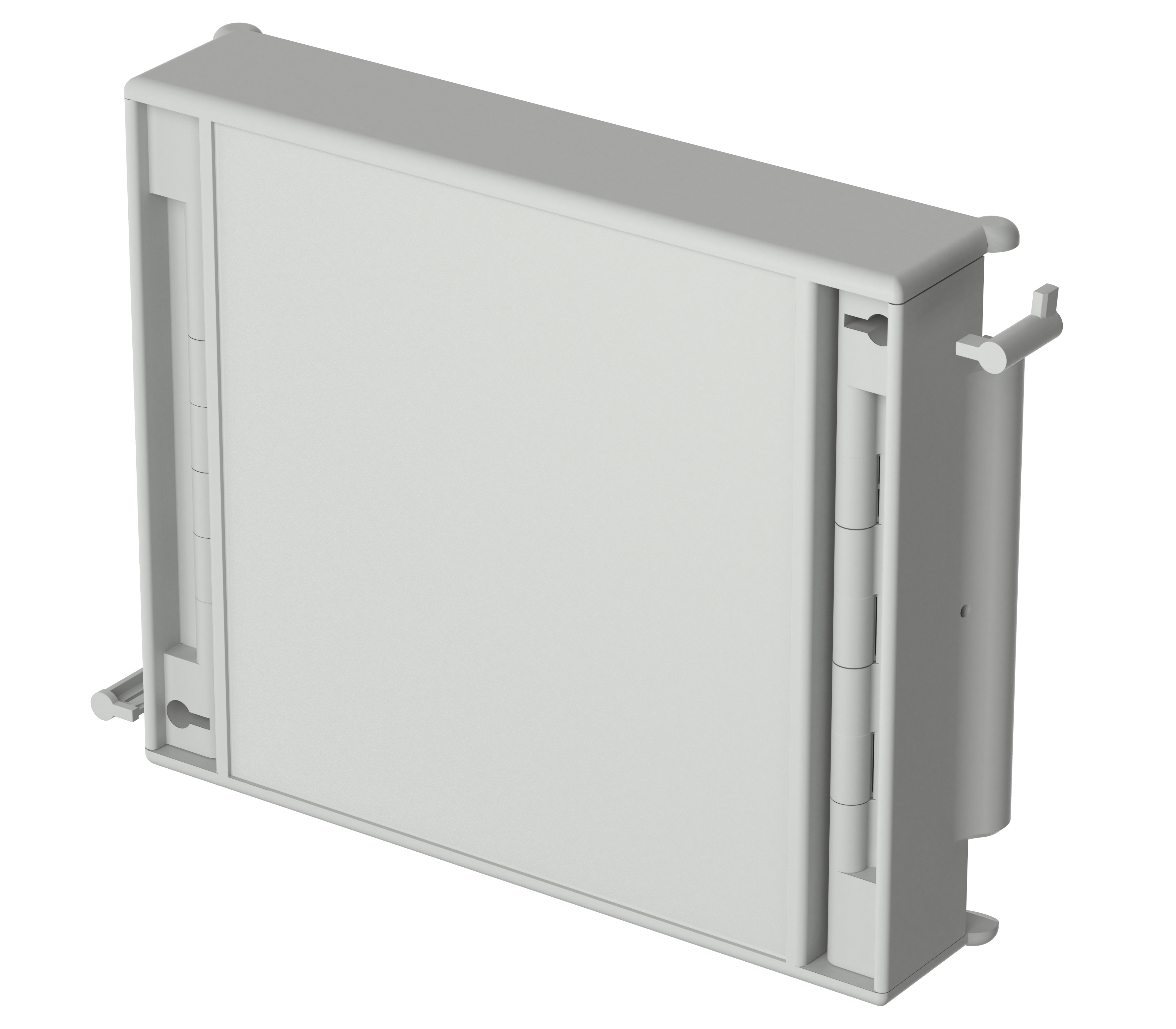

FD 5000 Front lid for accommodating membrane keypads
Front lid for accommodating membrane keypads
FD 5000
Order No:
79002800 Manufacturer No: 79002800
Dimensions
175.7 x 146.7 x 34 mmTechnical Drawings
79002800_FD-5000.pdf
79002800_FD-5000.pdf
(43.5 KB)
79002800_FD-5000.dxf
79002800_FD-5000.dxf
(594.2 KB)
Product Information
CombiCard_5000_7000_GB.pdf
(706.3 KB)
Product Specs
Color of enclosure group
Light grey, similar to RAL 7035
Protection class
IP 66
Enclosure Material
ABS; PC (only FD…G), seal made of CR; for details see Technical Information
Scope of delivery
Front lid with seal, 2 mounted locks, 1 blind plug (to close the lock opening on the opening side), 1 catch (to close the lock opening and one-time definition of the hinge side on the front lid)
Note
IP protection class is only guaranteed when the front lid is closed.
Material Data
ABS MMIA Polyman (Front lid)
ABS Elix H605 (Front lid)
ABS Cycolac GPM5500S (Front lid)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
