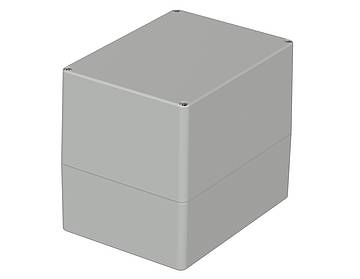

M 246 Enclosure, polycarbonate
Enclosure, polycarbonate
M 246
Order No:
02246000
Dimensions
160 x 120 x 140 mmTechnical Drawings
02246000_M-246-G.dxf
02246000_M-246-G.dxf
(654.3 KB)
02246000_M-246.pdf
02246000_M-246.pdf
(104.3 KB)
02246000_M-246.dxf
02246000_M-246.dxf
(677.4 KB)
Product Information
Euromas_ABS_PC_GB.pdf
(337.6 KB)
Product Specs
Color of enclosure group
Light grey
Protection class
IP 66
Enclosure Material
ABS, PC (UV stabilised) and selected sizes in PC UL 94 V0 (additional UL 94 V0 versions on request), seal made of CR;
V215: Vestamid, CR seal; for details see Technical Information
Scope of delivery
Lid and base, lid screws made of V2A, self-tapping screws for mounting bosses
Note
G = Design with crystal-clear lid.
IP = Ingress protection acc. to DIN EN 60529
Material Data
PC Lexan243R
PC Xantar22UR
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
