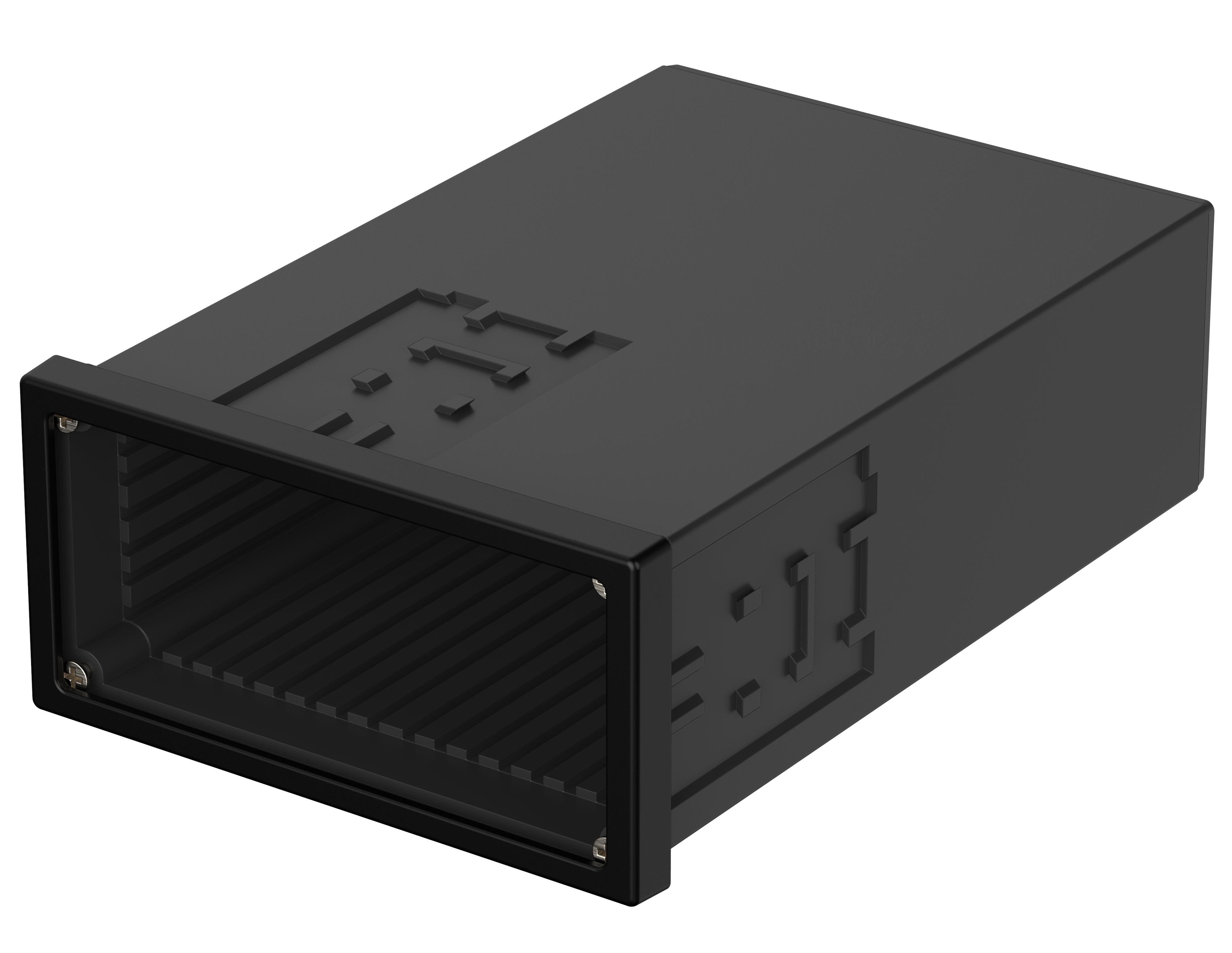

NGS 9413 Control panel mounting enclosure
Control panel mounting enclosure
NGS 9413
Order No:
17941301 Manufacturer No: 17941301
Dimensions
96 x 48 x 141 mmTechnical Drawings
17941301_NGS-9413-G.dxf
17941301_NGS-9413-G.dxf
(724.8 KB)
17941301_NGS-9413.pdf
17941301_NGS-9413.pdf
(44.2 KB)
17941301_NGS-9413.dxf
17941301_NGS-9413.dxf
(456.4 KB)
Product Information
Uninorm_GB.pdf
(356.7 KB)
Product Specs
Color of enclosure group
Black
Protection class
IP 40
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Scope of delivery
NGS…: Enclosure, standard front frame, rear lid, screws
NGS 9806-GR: Enclosure, standard front frame, 2 clamps
Note
NGS-9806-GR design with stepped rear panel.
Material Data
PPEPS NorylSE1 GFN1
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
