Polyester Ex

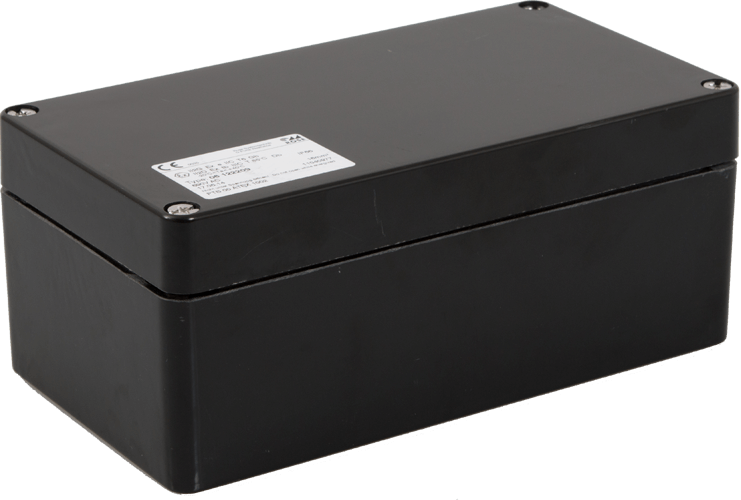

The polyester Ex enclosure range comprises sizes of 75 x 80 x 55 mm to 405 x 400 x 120 mm. These enclosures are supplied as component-certified empty enclosures and pre-assembled as Ex e or Ex is approved enclosures.
These robust enclosures obtain their typical black coloration thanks to the addition of graphite to the glass-fiber-reinforced polyester material.
These enclosures’ high degree of protection (IP 66) makes them suitable for both indoor and outdoor use. An extensive range of accessories rounds off the universal character of the polyester family of Ex enclosures.
The enclosure body consists of glass-fiber-reinforced polyester with a graphite additive. The lid and the base are screwed together by means of tethered stainless-steel screws. An offshore variant for equipping with cable glands for armored cables is also available on request.
ACCESSORIES
| Mounting plate | 10.01 11 01 | |||||||
| External mounting brackets | 10.03 11 01 | set = 4 pcs | ||||||
| DIN rails | 10.06 10 03 | TS 15 | ||||||
| PE busbar | 12.05 30 03 | |||||||
| Continuity plate | 12.05 52 50 | |||||||
PRODUCT RANGE SUMMARY
| Order-No. | H (mm) | W (mm) | D (mm) | Type |
| 06.08 08 06 | 75 | 80 | 56 | PExe 06010 |
| 06.08 08 08 | 75 | 80 | 75 | PExe 06015 |
| 06.08 11 06 | 75 | 110 | 56 | PExe 06020 |
| 06.08 11 08 | 75 | 110 | 75 | PExe 06025 |
| 06.08 16 06 | 75 | 160 | 56 | PExe 06030 |
| 06.08 16 08 | 75 | 160 | 75 | PExe 06035 |
| 06.08 19 06 | 75 | 190 | 56 | PExe 06040 |
| 06.08 19 08 | 75 | 190 | 75 | PExe 06045 |
| 06.08 23 06 | 75 | 230 | 56 | PExe 06050 |
| 06.08 23 08 | 75 | 230 | 75 | PExe 06055 |
| 06.12 12 09 | 120 | 122 | 91 | PExe 06060 |
| 06.12 22 09 | 120 | 220 | 91 | PExe 06065 |
| 06.16 16 09 | 160 | 160 | 91 | PExe 06070 |
| 06.16 26 09 | 160 | 260 | 91 | PExe 06075 |
| 06.16 36 09 | 160 | 360 | 91 | PExe 06080 |
| 06.16 56 09 | 160 | 560 | 91 | PExe 06085 |
| 06.25 26 12 | 250 | 255 | 121 | PExe 06090 |
| 06.25 26 16 | 250 | 255 | 161 | PExe 06095 |
| 06.25 40 12 | 250 | 400 | 121 | PExe 06100 |
| 06.25 40 16 | 250 | 400 | 161 | PExe 06105 |
| 06.25 60 12 | 250 | 600 | 121 | PExe 06110 |
| 06.36 36 09 | 360 | 360 | 91 | PExe 06115 |
| 06.41 40 12 | 405 | 400 | 121 | PExe 06120 |
| 06.41 40 20 | 405 | 400 | 201 | PExe 06125 |
| 16.08 08 06 | 75 | 80 | 56 | PExi 16010 |
| 16.08 08 08 | 75 | 80 | 75 | PExi 16015 |
| 16.08 11 06 | 75 | 110 | 56 | PExi 16020 |
| 16.08 11 08 | 75 | 110 | 75 | PExi 16025 |
| 16.08 16 06 | 75 | 160 | 56 | PExi 16030 |
| 16.08 16 08 | 75 | 160 | 75 | PExi 16035 |
| 16.08 19 06 | 75 | 190 | 56 | PExi 16040 |
| 16.08 19 08 | 75 | 190 | 75 | PExi 16045 |
| 16.08 23 06 | 75 | 230 | 56 | PExi 16050 |
| 16.08 23 08 | 75 | 230 | 75 | PExi 16055 |
| 16.12 12 09 | 120 | 122 | 91 | PExi 16060 |
| 16.12 22 09 | 120 | 220 | 91 | PExi 16065 |
| 16.16 16 09 | 160 | 160 | 91 | PExi 16070 |
| 16.16 26 09 | 160 | 260 | 91 | PExi 16075 |
| 16.16 36 09 | 160 | 360 | 91 | PExi 16080 |
| 16.16 56 09 | 160 | 560 | 91 | PExi 16085 |
| 16.25 26 12 | 250 | 255 | 121 | PExi 16090 |
| 16.25 26 16 | 250 | 255 | 161 | PExi 16095 |
| 16.25 40 12 | 250 | 400 | 121 | PExi 16100 |
| 16.25 40 16 | 250 | 400 | 161 | PExi 16105 |
| 16.25 60 12 | 250 | 600 | 121 | PExi 16115 |
| 16.36 36 09 | 360 | 360 | 91 | PExi 16120 |
| 16.41 40 12 | 405 | 400 | 121 | PExi 16125 |
| 16.41 40 20 | 405 | 400 | 201 | PExi 16130 |
| 26.08 08 06 | 75 | 80 | 56 | PExB 26010 |
| 26.08 08 08 | 75 | 80 | 75 | PExB 26015 |
| 26.08 11 06 | 75 | 110 | 56 | PExB 26020 |
| 26.08 11 08 | 75 | 110 | 75 | PExB 26025 |
| 26.08 16 06 | 75 | 160 | 56 | PExB 26030 |
| 26.08 16 08 | 75 | 160 | 75 | PExB 26035 |
| 26.08 19 06 | 75 | 190 | 56 | PExB 26040 |
| 26.08 19 08 | 75 | 190 | 75 | PExB 26045 |
| 26.08 23 06 | 75 | 230 | 56 | PExB 26050 |
| 26.08 23 08 | 75 | 230 | 75 | PExB 26055 |
| 26.12 12 09 | 120 | 122 | 91 | PExB 26060 |
| 26.12 22 09 | 120 | 220 | 91 | PExB 26065 |
| 26.16 16 09 | 160 | 160 | 91 | PExB 26070 |
| 26.16 26 09 | 160 | 260 | 91 | PExB 26075 |
| 26.16 36 09 | 160 | 360 | 91 | PExB 26080 |
| 26.16 56 09 | 160 | 560 | 91 | PExB 26085 |
| 26.25 26 12 | 250 | 255 | 121 | PExB 26090 |
| 26.25 26 16 | 250 | 255 | 161 | PExB 26095 |
| 26.25 40 12 | 250 | 400 | 121 | PExB 26100 |
| 26.25 40 16 | 250 | 400 | 161 | PExB 26105 |
| 26.25 60 12 | 250 | 600 | 121 | PExB 26110 |
| 26.36 36 09 | 360 | 360 | 91 | PExB 26115 |
| 26.41 40 12 | 405 | 400 | 121 | PExB 26120 |
| 26.41 40 20 | 405 | 400 | 201 | PExB 26125 |
16081108 / PExi 16025
Order No:
16.08 11 08 / 0160811080 Manufacturer No: 0160811080
Product Specs
Scope of Delivery
Junction box: Enclosure system – depending on version either with silicone seal, external earthing, DIN rails, internal earthing connection, terminals, manufacturing, cable glands
Assembly Instructions
Material Data
Do you have questions about this product?
Important!
Technical Data
| Certificates | PTB 00 ATEX 1002
IECEx PTB 08.0004 EAC № TC RU C-DE.AA87.B.00971 |
|---|---|
| Explosion protection | II 2G Ex e IIC T6/T5/T4 Gb
II 2G Ex ia IIC T6/T5/T4 Gb II 2G Ex d e ia [ia] mb IIC T6/T5/T4 Gb II 3G Ex e d mb ia [ia] nA nC [op is] IIC T6, T5, T4 Gc II 2D Ex tb IIIC T80°C/T95°C/T130°C Db IP66 |
| Material | glass fiber reinforced thermoset polyester, graphite added |
| Assembly table | |
| Color | RAL 9011, graphite black |
| Ingress protection | IP 66 to EN 60529 |
| Impact resistance | 7 Joule to EN 60079-0 |
| Flammability | self-extinguishing, UL 94 V-0 |
| Surface resistance | <109 Ohm to IEC 60093 |
| Toxicity | halogen free |
| Temperature range | -20°C to +40°C (acc. T6 = 80°C max. on surface temperature) -20°C to +55°C (acc. T5 = 95°C max. on surface temperature) -20°C to +90°C (acc. T4 = 130°C max. on surface temperature) to -55°C with special marking on request |
| Other versions on request | EMC |
