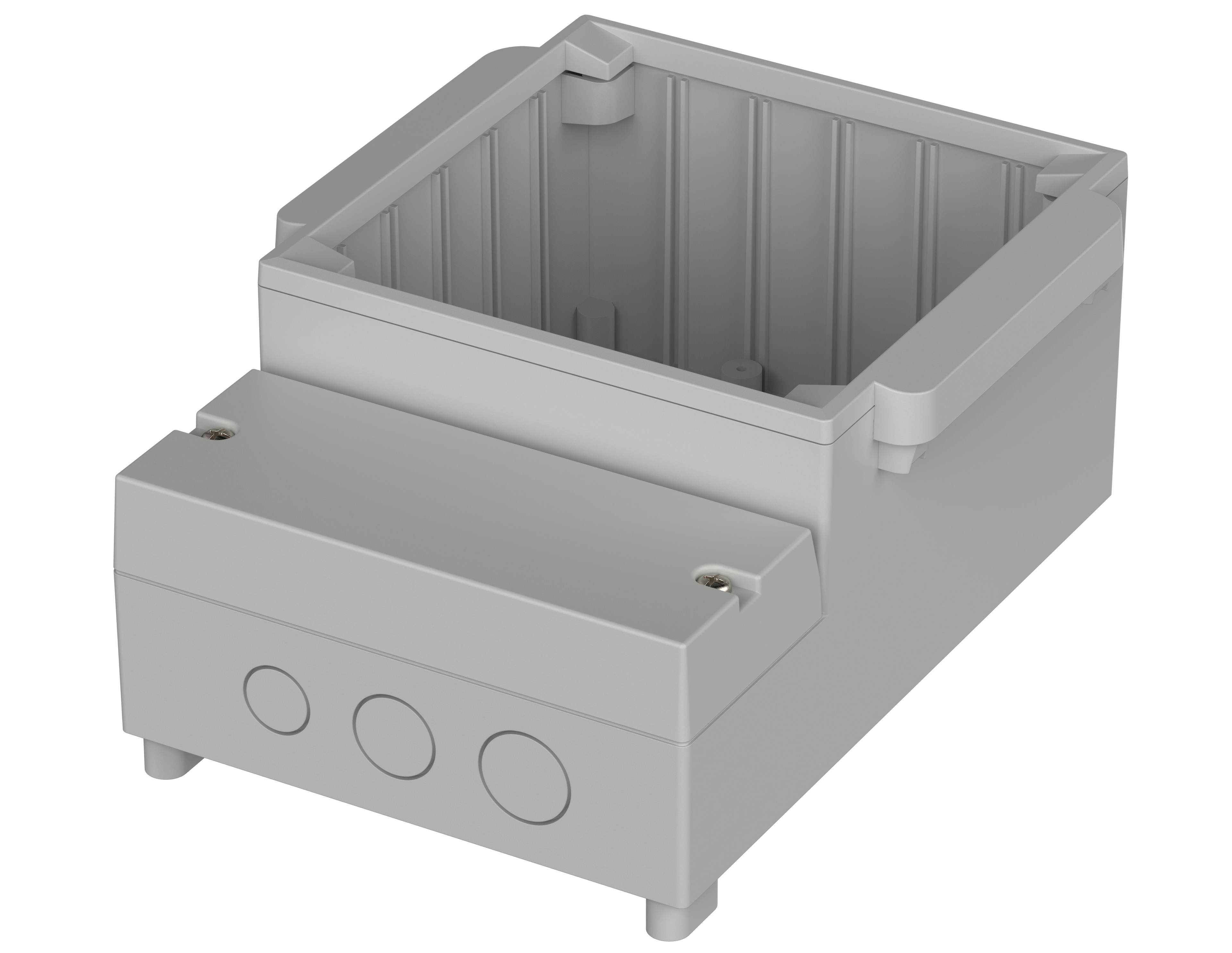

RCP 130 Enclosure with Pg pre-punchings in the terminal compartment
Enclosure with Pg pre-punchings in the terminal compartment
RCP 130
Order No:
41130009
Dimensions
131 x 186 x 81 mmTechnical Drawings
41130009_RCP-130-G.dxf
41130009_RCP-130-G.dxf
(838.5 KB)
41130009_RCP-130.pdf
41130009_RCP-130.pdf
(98.5 KB)
41130009_RCP-130.dxf
41130009_RCP-130.dxf
(827.7 KB)
Product Information
Reglocard_Plus_Combifront_Intercard_GB.pdf
(483.5 KB)
Product Specs
Color of enclosure group
Light grey
Protection class
IP 40
Enclosure Material
ABS, PC; seal made of EPDM; UL 94 V0 types on request; for details see Technical Information
Scope of delivery
Base, covering frame, terminal compartment lid, screws
Note
Enclosures in UL 94 V0 and/or without pre-punchings on request.
Material Data
ABS MMIA Polyman (Enclosure)
ABS Elix H605 (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
