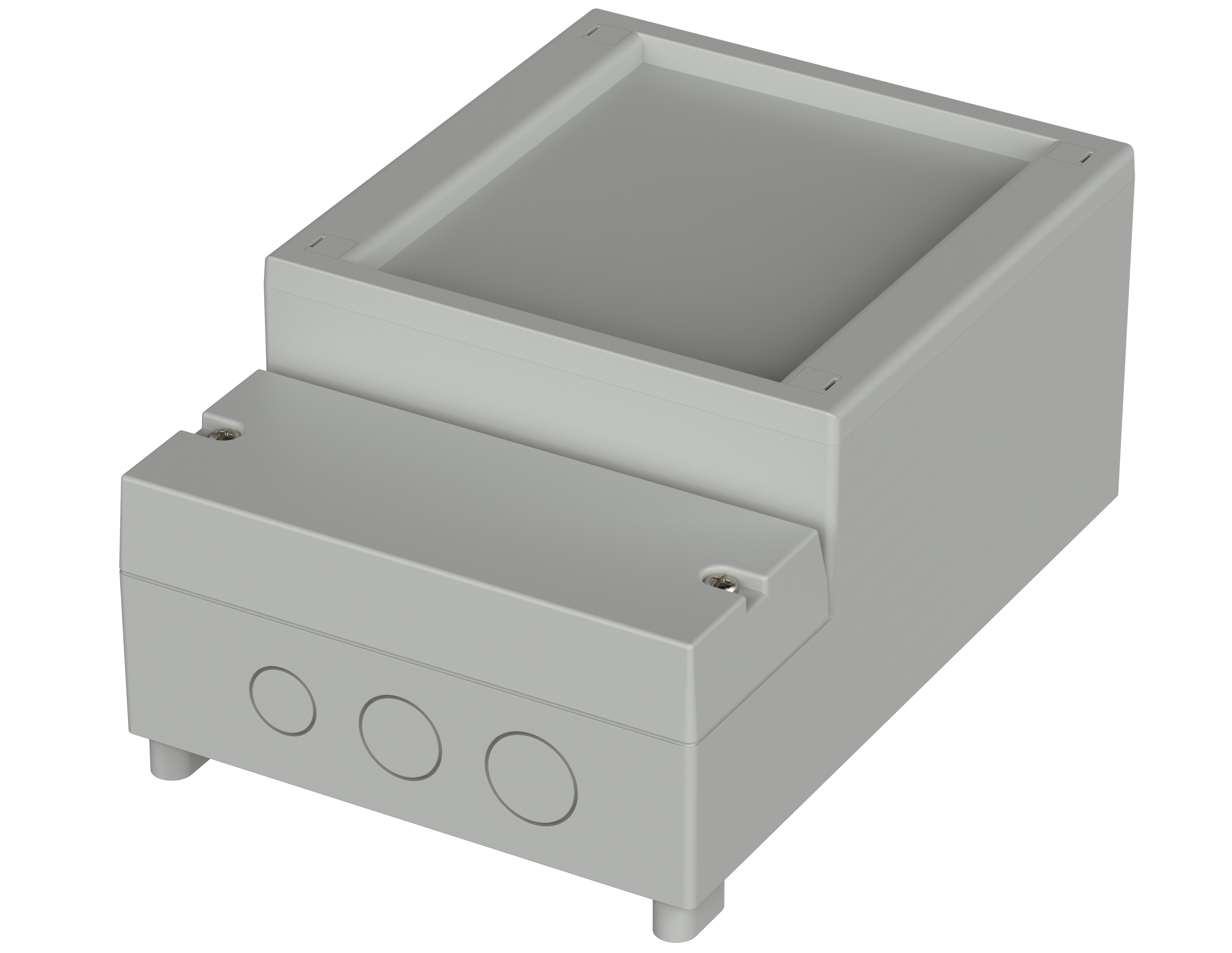

RCPM 130 F Enclosure with metric pre-punchings in the terminal compartment
Enclosure with metric pre-punchings in the terminal compartment
RCPM 130 F
Order No:
41131609
Dimensions
131 x 186 x 82.5 mmTechnical Drawings
41131609_RCPM-130-F-G.dxf
41131609_RCPM-130-F-G.dxf
(806.5 KB)
41131609_RCPM-130-F.pdf
41131609_RCPM-130-F.pdf
(97.2 KB)
41131609_RCPM-130-F.dxf
41131609_RCPM-130-F.dxf
(835.5 KB)
Product Information
Reglocard_Plus_Combifront_Intercard_GB.pdf
(483.5 KB)
Product Specs
Color of enclosure group
Light grey
Protection class
IP 65
Enclosure Material
ABS, PC; seal made of EPDM; UL 94 V0 types on request; for details see Technical Information
Scope of delivery
Base, recessed front lid, terminal compartment lid, screw covers, screws
Note
Designs RCPM 130 F to 250 F: IP 65; RCPM 310 F to 400 F: IP 54. Enclosures in UL 94 V0 and/or without pre-punchings on request.
Material Data
ABS MMIA Polyman (Enclosure)
ABS Elix H605 (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
