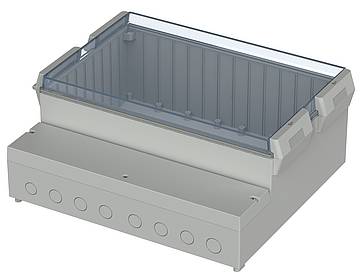

RCPM 4000 Enclosure with metric pre-punchings in the terminal compartment
Enclosure with metric pre-punchings in the terminal compartment
RCPM 4000
Order No:
41401109
Dimensions
363.4 x 318.6 x 150 mmTechnical Drawings
41401109_RCPM-4000-G.dxf
41401109_RCPM-4000-G.dxf
(1.1 MB)
41401109_RCPM-4000.pdf
41401109_RCPM-4000.pdf
(133.7 KB)
41401109_RCPM-4000.dxf
41401109_RCPM-4000.dxf
(1.1 MB)
Product Information
Reglocard_Plus_Combifront_Intercard_GB.pdf
(483.5 KB)
Product Specs
Color of enclosure group
Light grey
Protection class
IP 65
Enclosure Material
ABS, PC; seal made of EPDM; UL 94 V0 types on request; for details see Technical Information
Scope of delivery
Base, crystal-clear lid, hinged, mounted with snap lock, terminal compartment lid, catch, blind plug, screws
Note
CSA certificate for all V0 versions on request.
Enclosures without pre-punchings on request.
Material Data
ABS MMIA Polyman (Enclosure)
ABS Elix H605 (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
PC Lexan243R (Crystal Clear)
PC Xantar22UR (Crystal Clear)
PC Lexan945AU (Crystal Clear)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
