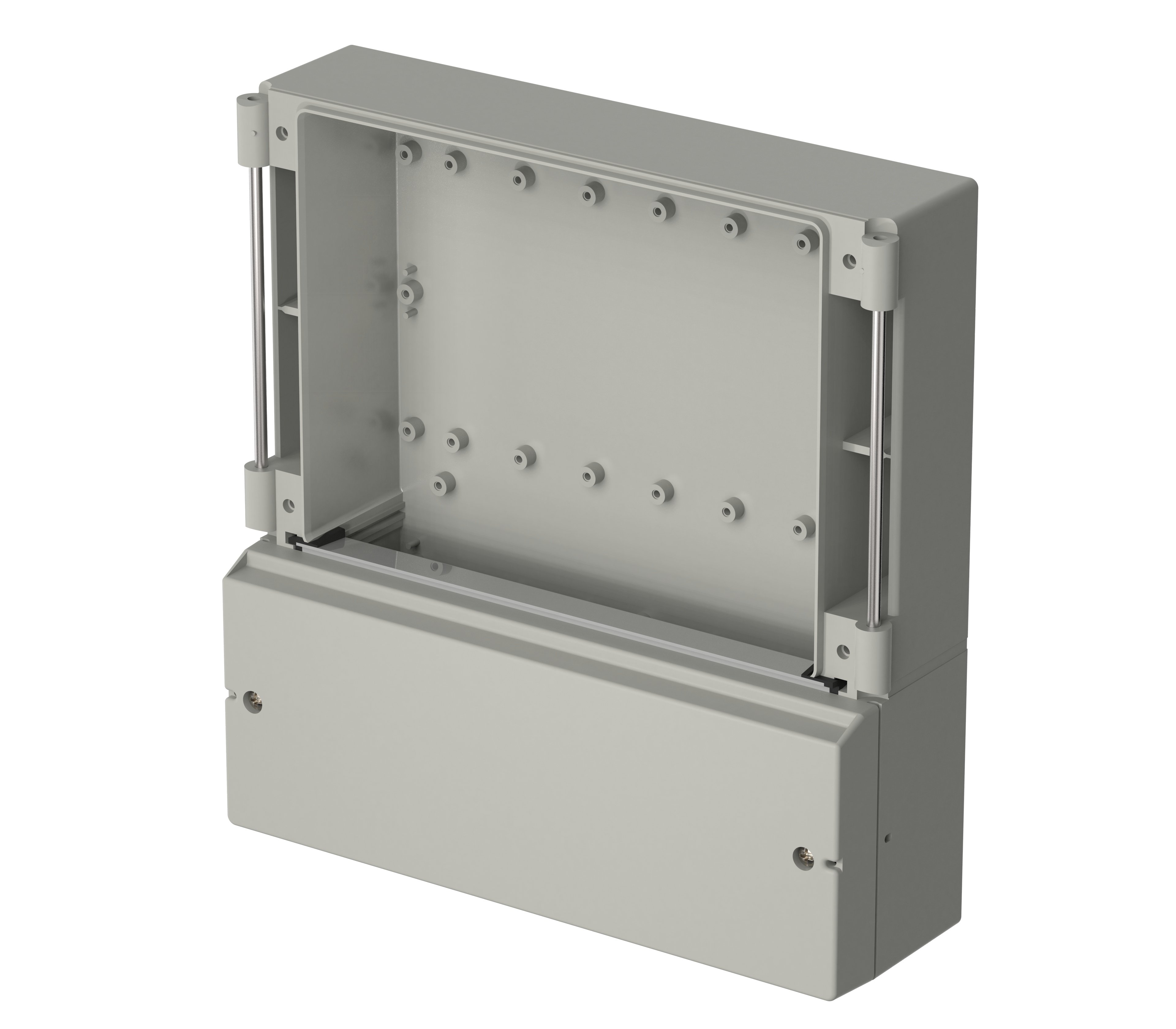

RD 6000 K Rear lid with terminal compartment
Rear lid with terminal compartment
RD 6000 K
Order No:
79000500 Manufacturer No: 79000500
Dimensions
226.5 x 236.7 x 50 mmTechnical Drawings
79000500_RD-6000-K.pdf
79000500_RD-6000-K.pdf
(72.1 KB)
79000500_RD-6000-K.dxf
79000500_RD-6000-K.dxf
(733.7 KB)
Product Information
CombiCard_5000_7000_GB.pdf
(706.3 KB)
Product Specs
Color of enclosure group
Agate grey, similar to RAL 7038
Protection class
IP 66
Enclosure Material
ABS; PC (only FD…G), seal made of CR; for details see Technical Information
Scope of delivery
Rear lid, terminal compartment bar, terminal compartment lid including seal and fixing screws
Note
A fixing kit BS 5670 79005500 is also required for fitting front panels FP..000 I in the rear lid. This elevates the front panel in the rear lid.
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
TPE KRAIBURG KTC2GPZ (Seal)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
