Pilot 10
Manufacturer No: 294002000
Dimensions
7075 x 93 x 190 mmTechnical Drawings
M01081306
M01081306.pdf
(77.4 KB)
Scope of Delivery

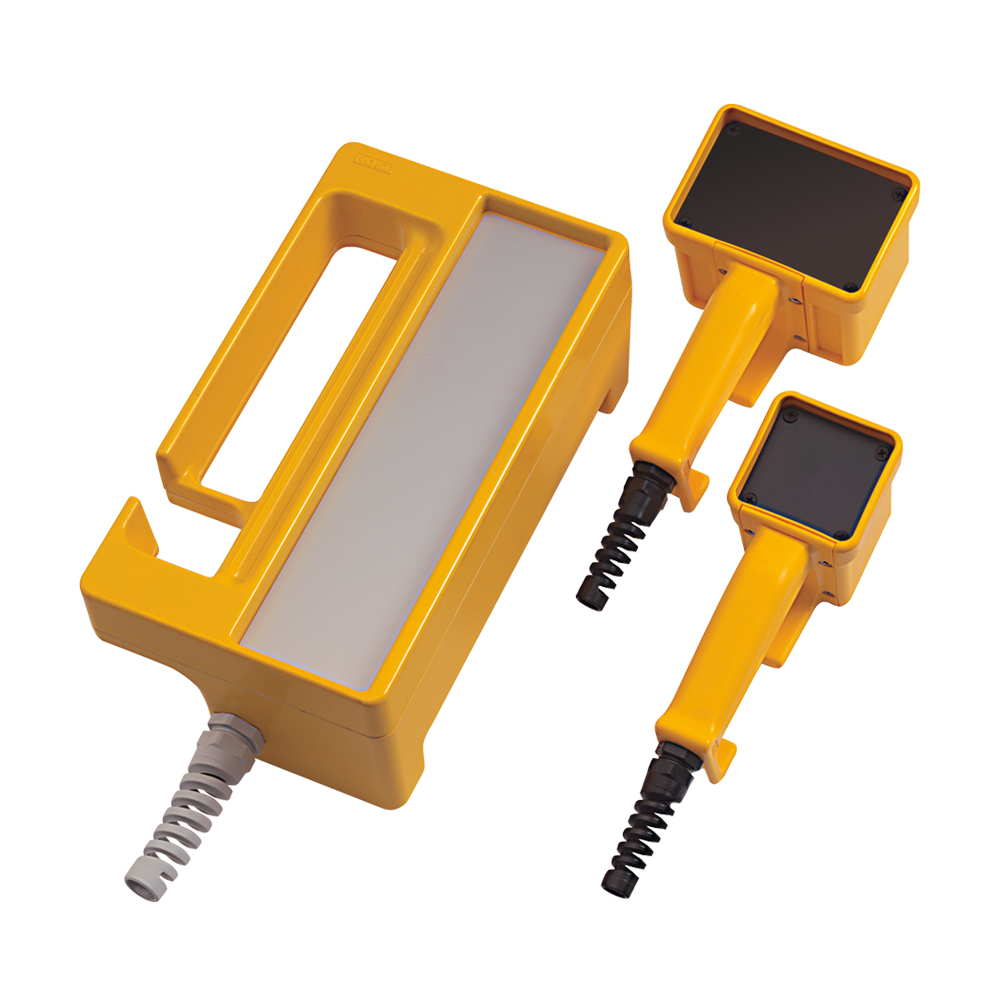

Pilot 10/20: enclosure with handle, including cable gland M 20 x 1,5, front plate with fastening screw and wall holder
Pilot 30: two-part Polyester enclosure with self-adhesive aluminum front plate, enclosure screws and wall holder
ACCESSORIES (sold separately)
ITEM: PART NUMBER:
Wall holder 29.60 01 00
Do you have questions about this product?
Important!
Technical Data
| Material | Pilot 10 and Pilot 20: polyamide
Pilot 30: polyester |
|---|---|
| Color | RAL 1003, signal yellow, Pilot 30: RAL 1021, rape yellow |
| Ingress protection | Pilot 10 and Pilot 20: IP 65 to EN 60529
Pilot 30: IP 66 to EN 60529 |
| Impact resistance | 7 Joule in reference to EN 60079-0 |
| Flammability | Pilot 10 and Pilot 20: UL 94 HB
Pilot 30: self-extinguishing UL 94 V-0 |
| Temperature range | -40°C to +60°C |
