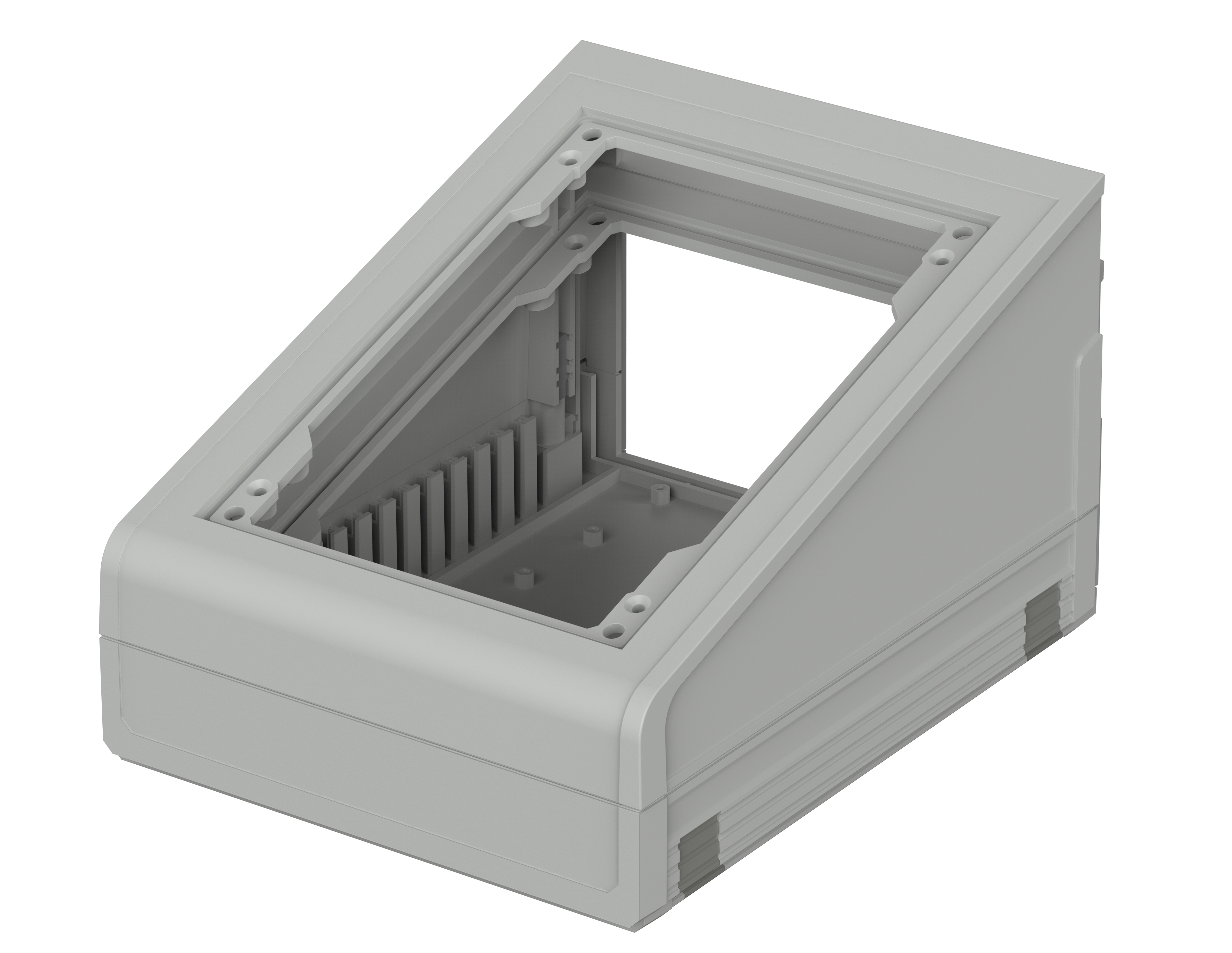

UMP 32018 FP Enclosure with open console area
Enclosure with open console area
UMP 32018 FP
Order No:
45320185 Manufacturer No: 45320185
Dimensions
157.5 x 198.9 x 120.4 mmTechnical Drawings
45320185_UMP-32018-FP-G.dxf
45320185_UMP-32018-FP-G.dxf
(1.7 MB)
45320185_UMP-32018-FP.pdf
45320185_UMP-32018-FP.pdf
(63.3 KB)
45320185_UMP-32018-FP.dxf
45320185_UMP-32018-FP.dxf
(647.4 KB)
Product Information
Ultrapult_GB.pdf
(252.6 KB)
Product Specs
Color of enclosure group
Light grey, similar to RAL 7035
Protection class
IP 40
Enclosure Material
ABS; for details see Technical Information
Scope of delivery
Lid and base, 4 screw covers, 4 rubber feet, 4 screws, incl. seal in lid to seal the operating area
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
