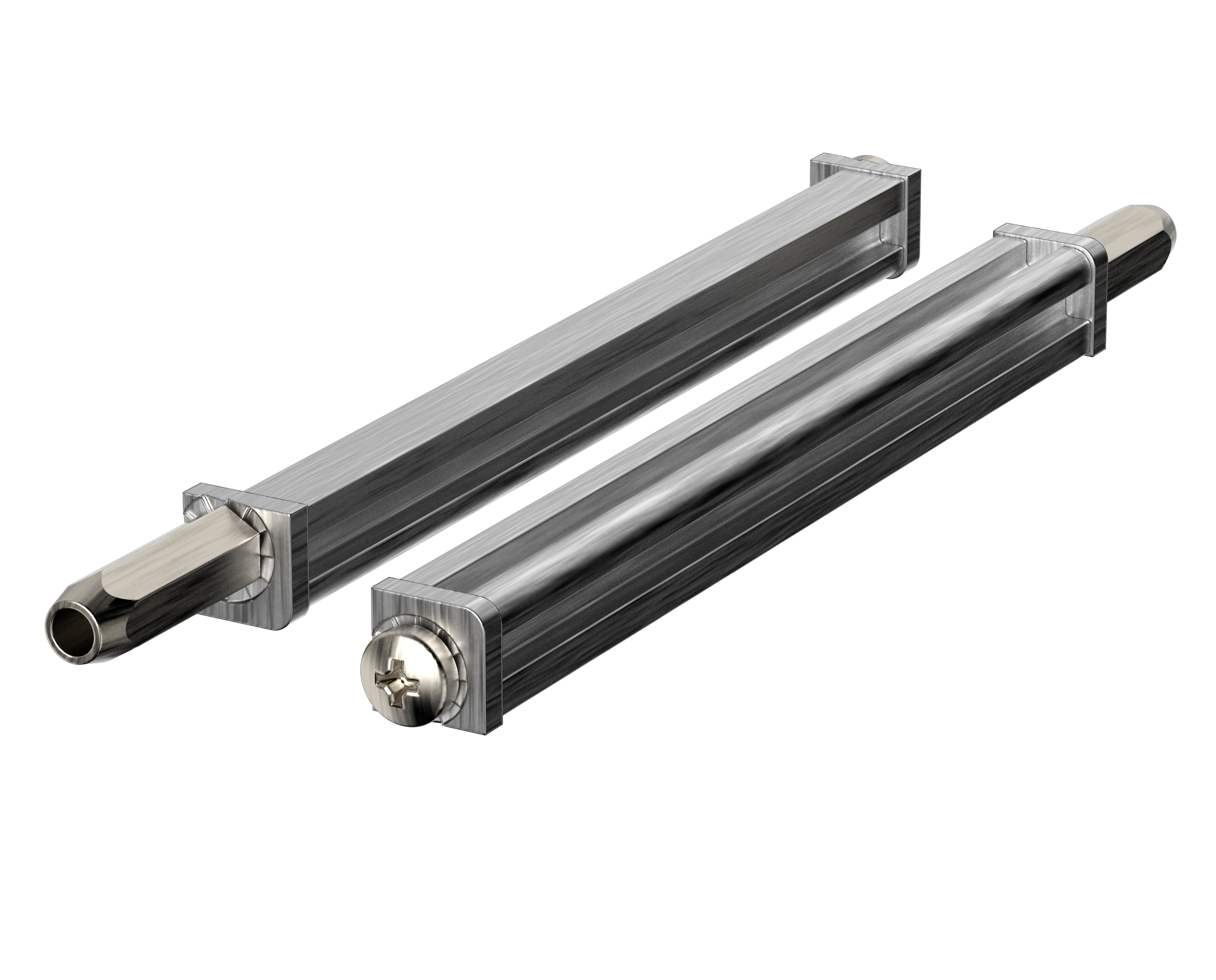

ZA 0700 Tie bar for mounting the fronts, Basic elements (height 87.5 mm) and rear lid
Tie bar for mounting the fronts, Basic elements (height 87.5 mm) and rear lid
ZA 0700
Order No:
39907000
Technical Drawings
39907000_ZA-0700.pdf
39907000_ZA-0700.pdf
(191.7 KB)
39907000_ZA-0700.dxf
39907000_ZA-0700.dxf
(380.6 KB)
Product Information
CombiCard_1000-3000_CombiSet_500_GB.pdf
(994.9 KB)
Product Specs
Color of enclosure group
—
Enclosure Material
ABS; PC (only crystal-clear lids), seal made of EPDM; for details see Technical Information
Scope of delivery
1 tie bar set
Note
If only 87.5 mm high basic elements are contained in the configuration, a tie bar set without “N” must be used.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
