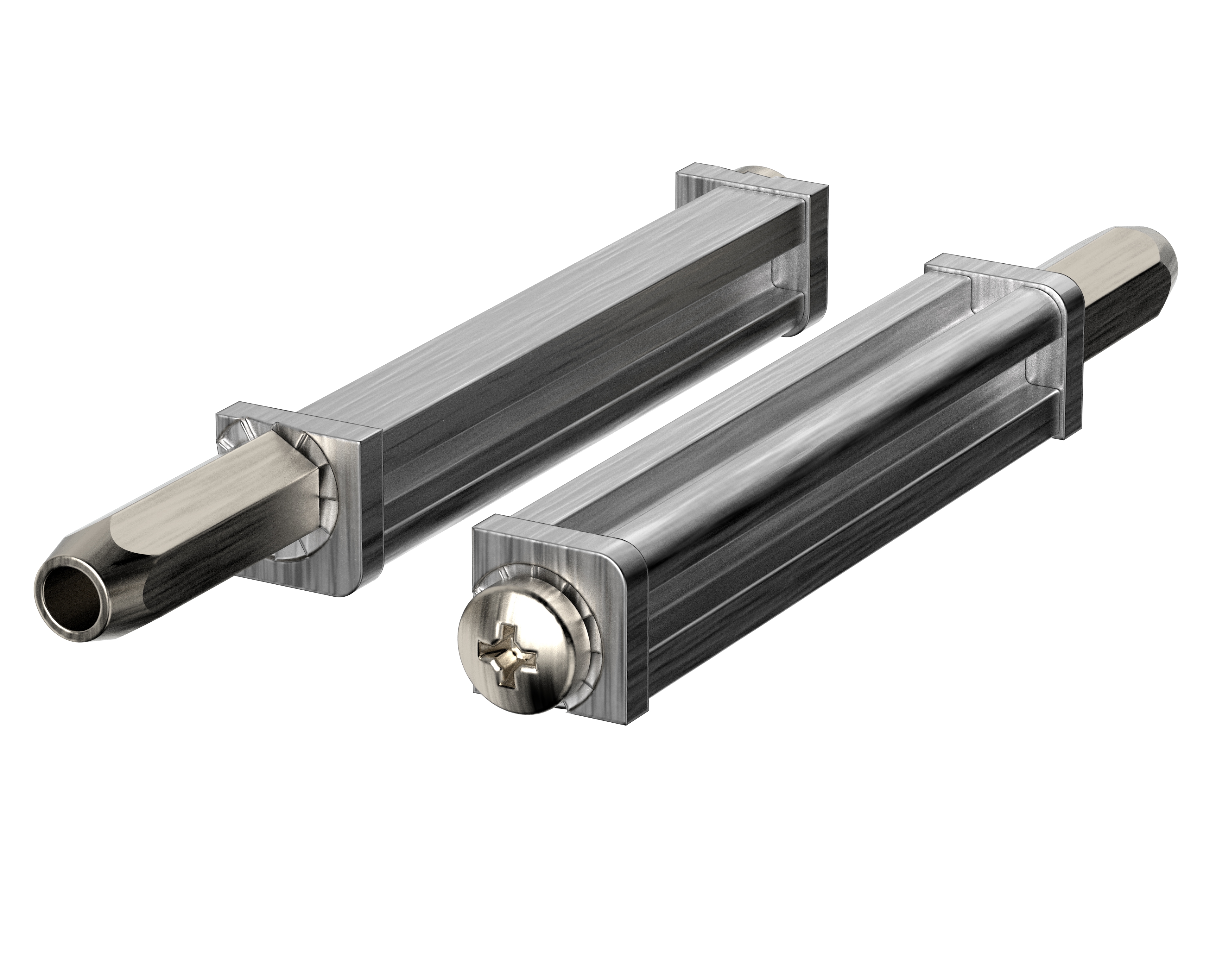

ZA 0700 N N tie bars for mounting of the fronts, Basic elements BC…N (height 51 mm) and rear lid
N tie bars for mounting of the fronts, Basic elements BC…N (height 51 mm) and rear lid
ZA 0700 N
Order No:
39907100
Technical Drawings
39907100_ZA-0700-N.pdf
39907100_ZA-0700-N.pdf
(191.7 KB)
39907100_ZA-0700-N.dxf
39907100_ZA-0700-N.dxf
(380.6 KB)
Product Information
CombiCard_1000-3000_CombiSet_500_GB.pdf
(994.9 KB)
Product Specs
Color of enclosure group
—
Enclosure Material
ABS; PC (only crystal-clear lids), seal made of EPDM; for details see Technical Information
Scope of delivery
1 tie bar set
Note
If the configuration includes a BC…N basic element, a tie bar set “N” is needed. If two or more BC…N elements are included, a special tie bar – available on request – must be used.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
