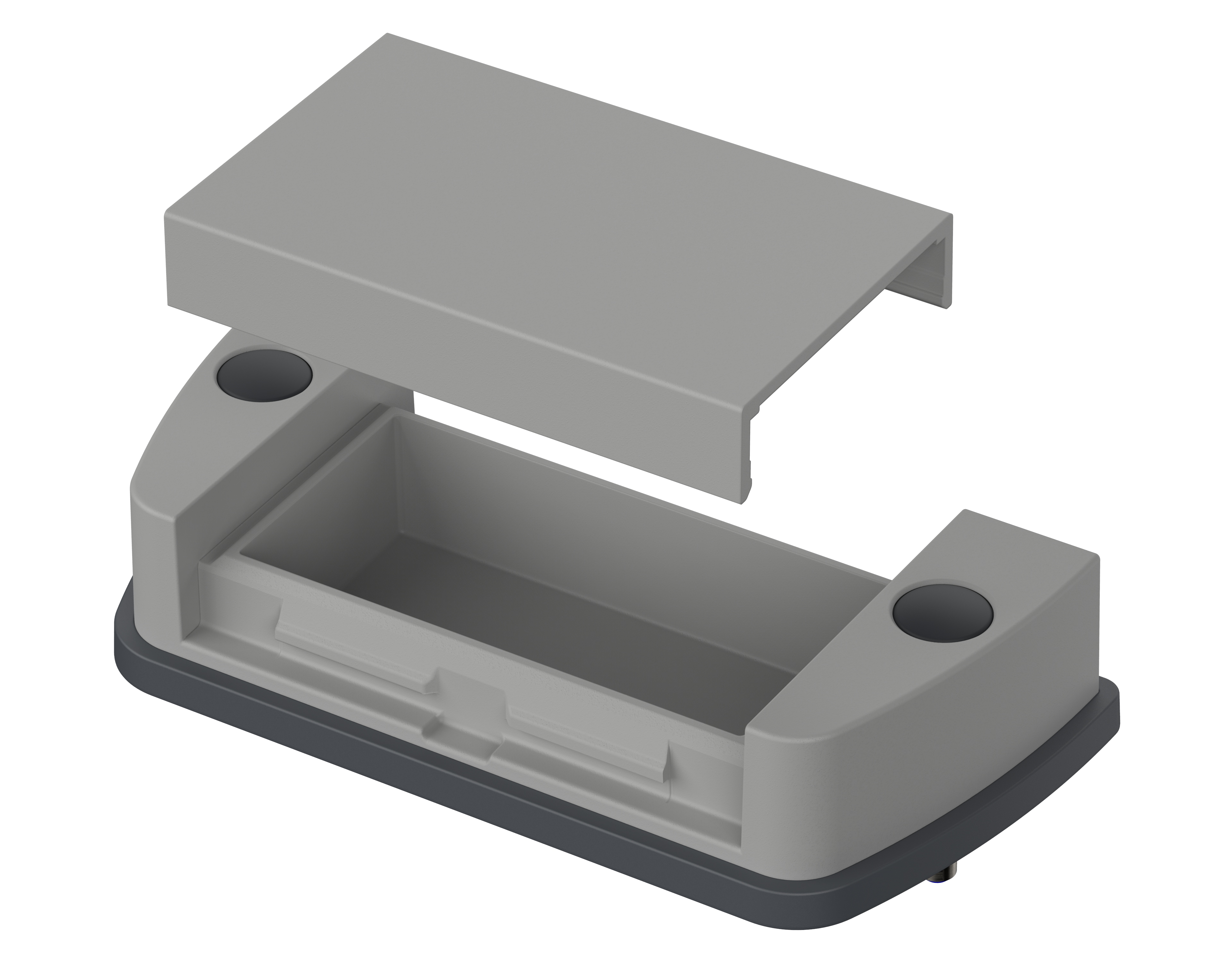

ASM 830 AL-9006 Mounting lid with removable aluminium cap

Mounting lid with removable aluminium cap

ASM 830 AL-9006

Order No: 94411400
Technical Drawings
Product Information

Product Specs

Color of enclosure group

Silver

Enclosure Material

Extruded profiles: Al Mg Si 0.5 powder-coated;

Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;

Seal: TPE;

for details see Technical Information

Scope of delivery

Lid including dark grey seal, screws, aluminium cap, cap seal, screws, graphite grey screw covers

Note

max. achievable ingress protection IP 65 (dependent on profile version)

Material Data

DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))

Do you have questions about this product?

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
