ASM 830 SAL1-9006 Mounting lid with hinged aluminium flap; hinged side = membrane side
Mounting lid with hinged aluminium flap; hinged side = membrane side
ASM 830 SAL1-9006
Order No:
94411200*
Technical Drawings
94411200_ASM-830-SAL1-9006-G.dxf
94411200_ASM-830-SAL1-9006-G.dxf
(1.1 MB)
94411200_ASM-830-SAL1-9006.pdf
94411200_ASM-830-SAL1-9006.pdf
(148.2 KB)
94411200_ASM-830-SAL1-9006.dxf
94411200_ASM-830-SAL1-9006.dxf
(1,010.5 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Silver
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery

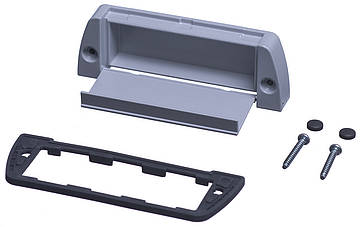

Lid including dark grey seal and aluminium flap, flap seal, screws, graphite grey screw covers
Note
max. achievable ingress protection IP 65 (dependent on profile version)
Assembly Instructions
Material Data
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
