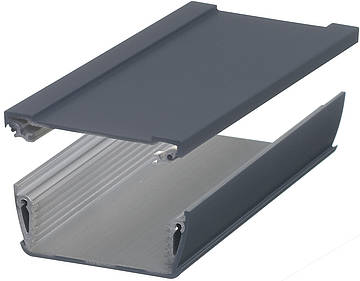

ASPH 830-0150 7024 Enclosure profiles, horizontally-divided
Enclosure profiles, horizontally-divided
ASPH 830-0150 7024
Order No:
94212150 Manufacturer No: 94212150
Dimensions
74 x 32.8 x 150 mmTechnical Drawings
94212150_ASPH-830-0150-7024-G.dxf
94212150_ASPH-830-0150-7024-G.dxf
(344.0 KB)
94212150_ASPH-830-0150-7024.pdf
94212150_ASPH-830-0150-7024.pdf
(139.4 KB)
94212150_ASPH-830-0150-7024.dxf
94212150_ASPH-830-0150-7024.dxf
(710.8 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
Assembly Instructions
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
