ASPH 830-0200 9006 Enclosure profiles, horizontally-divided

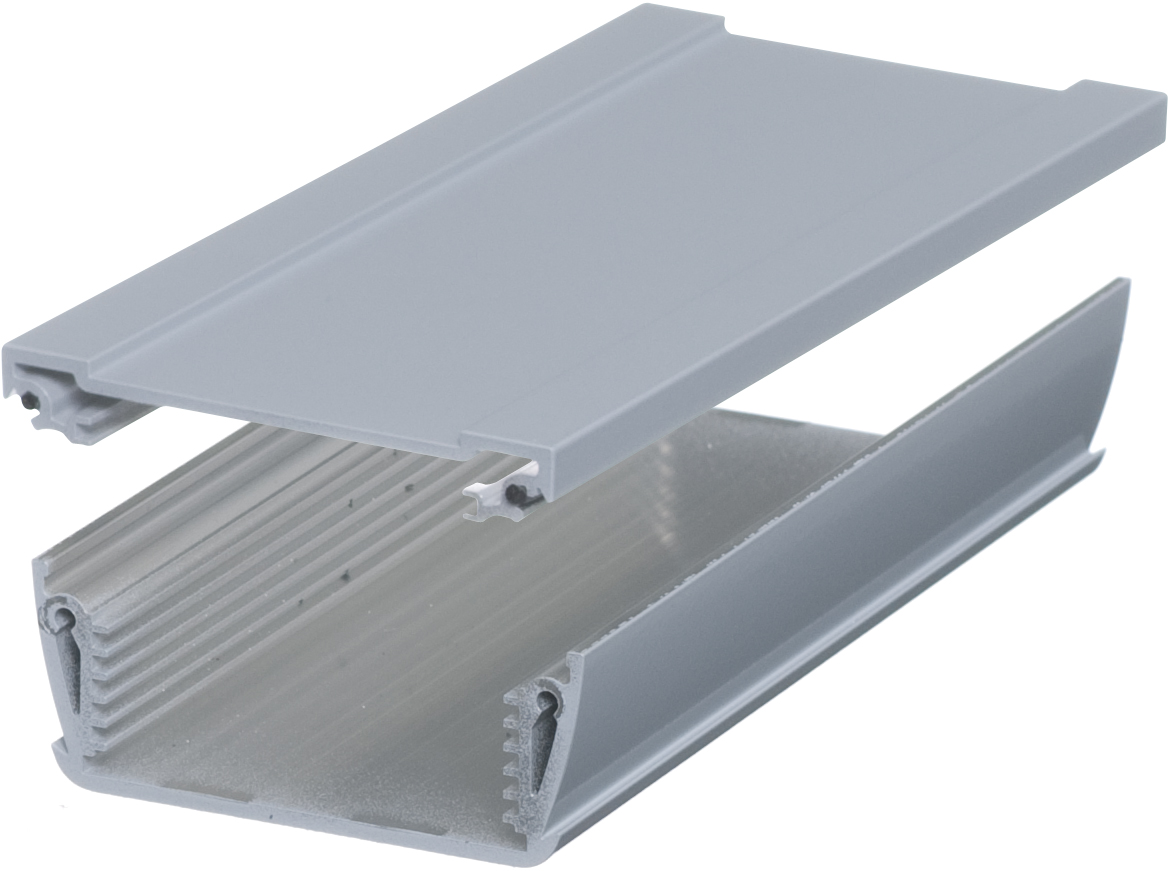

Enclosure profiles, horizontally-divided
ASPH 830-0200 9006
Order No:
94211200
Dimensions
74 x 32.8 x 200 mmTechnical Drawings
94211200_ASPH-830-0200-9006-G.dxf
94211200_ASPH-830-0200-9006-G.dxf
(344.0 KB)
94211200_ASPH-830-0200-9006.pdf
94211200_ASPH-830-0200-9006.pdf
(139.4 KB)
94211200_ASPH-830-0200-9006.dxf
94211200_ASPH-830-0200-9006.dxf
(710.8 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Silver, similar to RAL 9006
Protection class
IP 65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
Assembly Instructions
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
