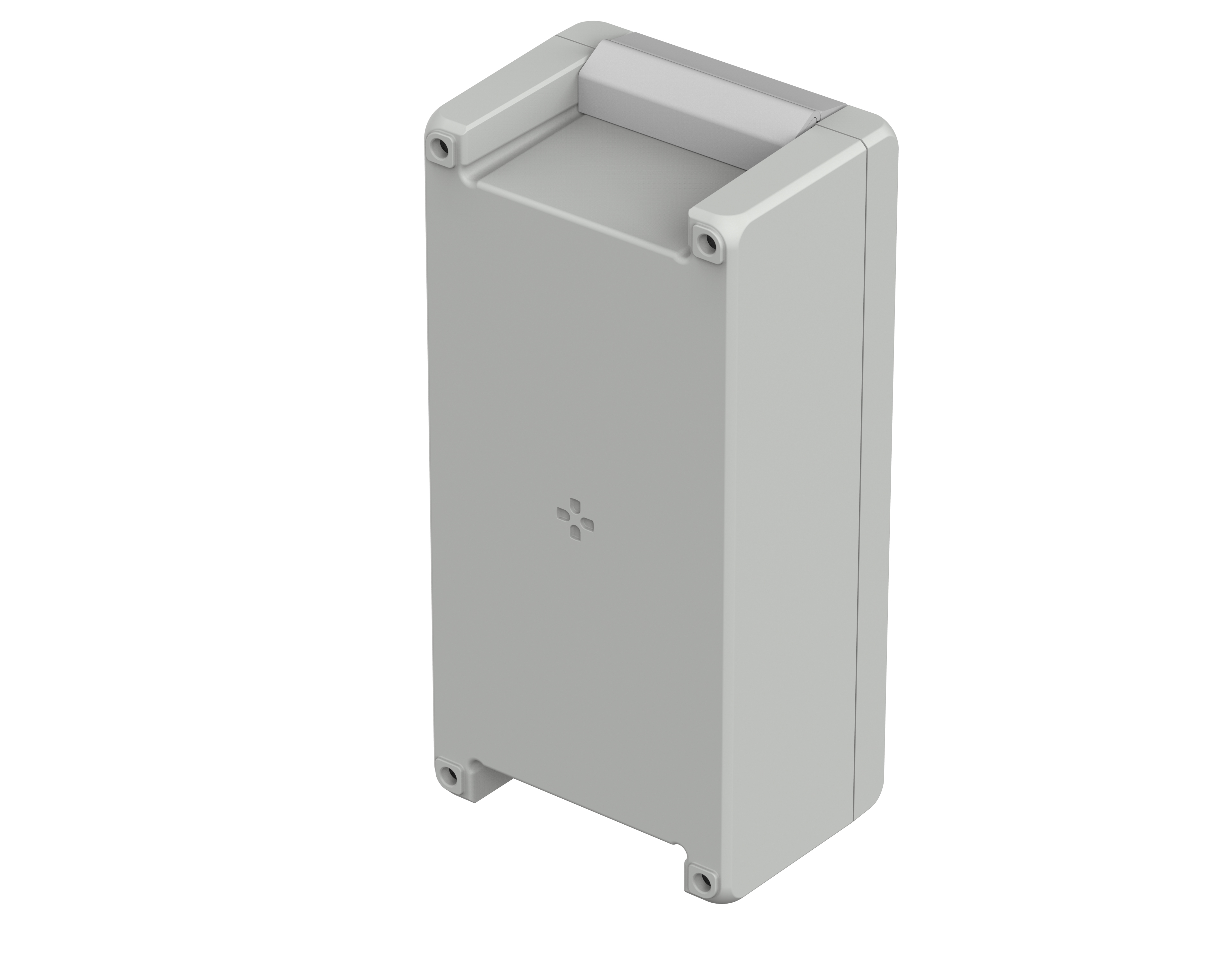

Enclosure with smooth lid, light grey, hinged, with silicone lid seal

Model BA 241309 SIL-7035
Manufacturer No 00115235.SIL*
259 x  128 x  90 mm
Material cast alloy
IP Rating 66
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      A

      259

      B

      128

      C

      90

      a1

      -

      a2

      214,5

      b1

      -

      b2

      118,5

      c1

      83,5

      Colour

      Light grey

      Enclosure material

      cast alloy

      Artikel_IP_Nummer

      66

      Artikel_Farbe

      Light grey, similar to RAL 7035

      Artikel_IK_Nummer

      07,08

      NEMA

      3

      Assembly Instructions

      Bocube-Alu_BA_Gehaeusemontage_Enclosure_Assembly_00911501.pdf (1.5 MB)

      Material Data

      AlSi12 Legierung (Cast material)
      AluProfil Legierung (Profile material)
      DB Beschichtung Brillux 5903 (Powder coating)
