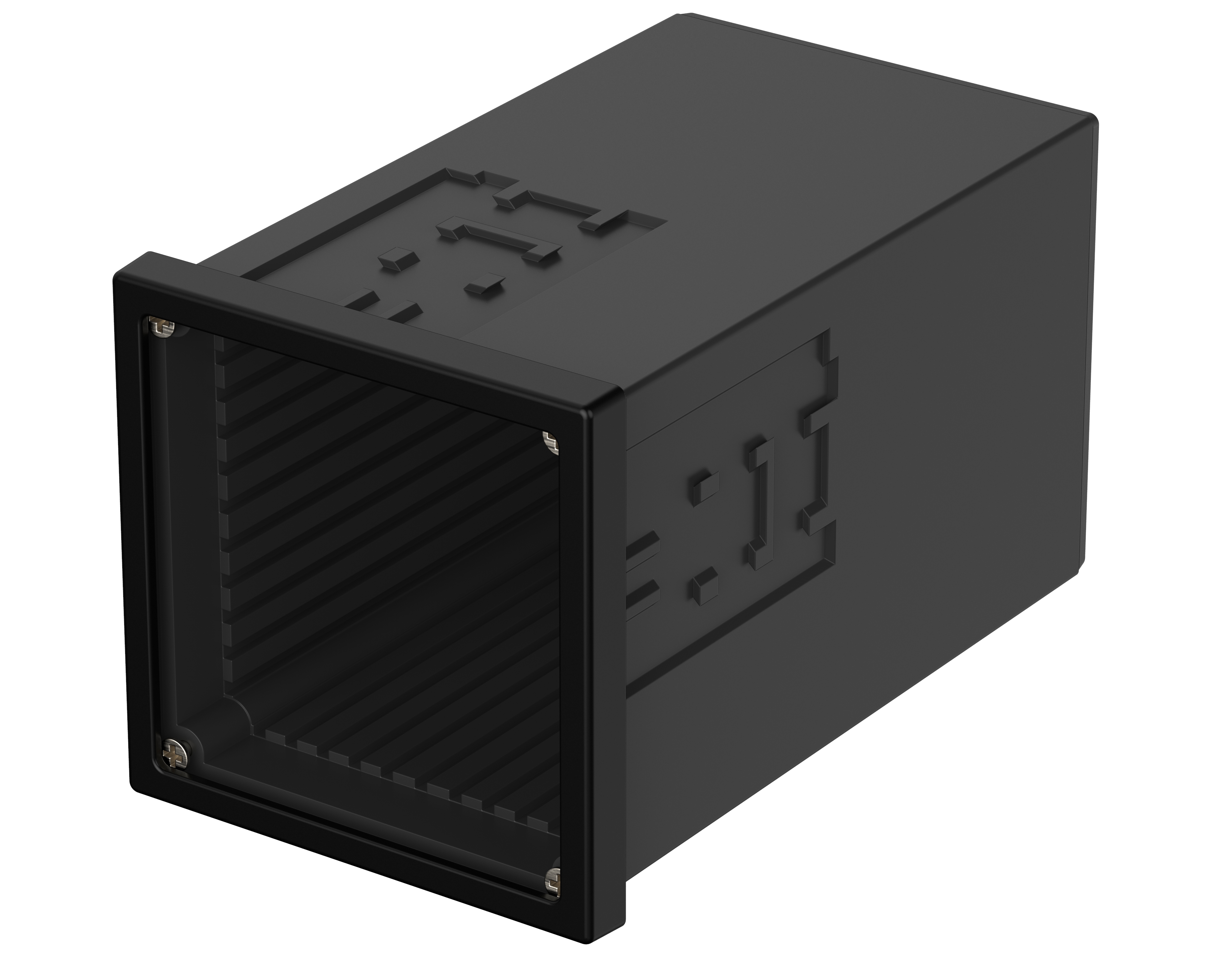

NGS 7711 Control panel mounting enclosure
Control panel mounting enclosure
NGS 7711
Order No:
17771101* Manufacturer No: 17771101
Dimensions
72 x 72 x 119 mmTechnical Drawings
17771101_NGS-7711-G.dxf
17771101_NGS-7711-G.dxf
(713.6 KB)
17771101_NGS-7711.pdf
17771101_NGS-7711.pdf
(41.1 KB)
17771101_NGS-7711.dxf
17771101_NGS-7711.dxf
(435.8 KB)
Product Information
Uninorm_GB.pdf
(356.7 KB)
Product Specs
Color of enclosure group
Black
Protection class
IP 40
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Scope of delivery
NGS…: Enclosure, standard front frame, rear lid, screws
NGS 9806-GR: Enclosure, standard front frame, 2 clamps
Note
NGS-9806-GR design with stepped rear panel.
Material Data
PPEPS NorylSE1 GFN1
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
